Ballasts, Electronic
QTi 1x28 54 35 49W GII 220V Quicktronic intelligent
1383358 | Manufacturer: Osram | EAN: 4008321383358 | MPN: QTI-1-28-54-35-49
More info - QTi 1x28 54 35 49W GII Electronic Ballast
QTi 1x28 54 35 49W GII 220V Quicktronic intelligent - Long lamp life, automatic restart after replacement. Perfect for emergency lighting systems, industry, offices, public buildings, sports halls, and factories. Energy-efficient with VDE/VDE EMC certification. Ideal for strip lighting and modernizing existing systems.
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
DC voltage 176 - 276 V
Operating frequency 42 - 85 kHz

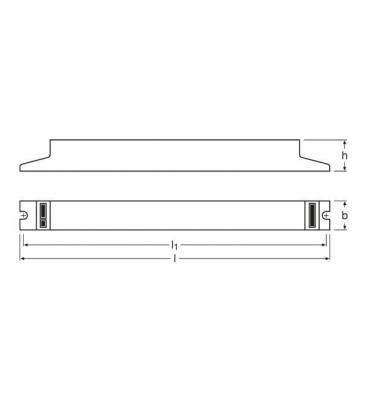

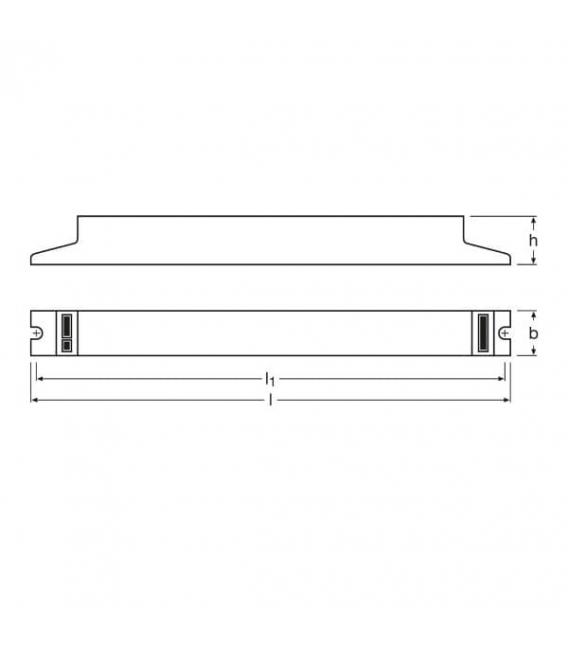

Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Ambient temperature range –20…+50 °C
Dimmable No
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / CE
EEI - Energy Label A2 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Areas of application
• Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Sports halls and factories
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Modernization of existing systems
