HF B 236 TL-D EII 220V
931580 | Manufacturer: Philips | EAN: 8711500931580 | MPN: 913700192866
More info - HF B 236 TL-D EII 220V Electronic Ballast
Affordable and reliable, the HF B 236 TL-D EII 220V is a high-frequency electronic ballast for TLD fluorescent lamps . It complies with CE standards and offers an ideal alternative to electromagnetic ballasts. With energy efficiency and a long lifetime, this ballast is perfect for applications in department stores, airports, offices, and even high-risk or explosive areas. Upgrade your lighting system today!
Application code EII
Rated Lamptype TL-D
Rated Number of Lamps 2 piece
Rated Ballast-Lamp Power 36 W
Line Voltage 220 - 240 V
Line Frequency 50 - 60 Hz
Energy Efficiency Index A2
Lifetime 90% surv.@Tcaselife 50000 h
Ignition Method Cold Start
Automatic restart Yes
Ignition time 0.5 (max) s
Operating frequency 42 (min), 45 (nom) kHz
Mains voltage safety (AC) –10% /+10%
Mains voltage performance (AC) -8% /+6%
Inrush current Peak 18 (max) A
Inrush current Width 0.25ms
Earth leakage current 0.5 mA
Power losses gear 4 W
Constant wattage deviation -2% /+2%
Ballast Lumen Factor 0.95 -
PowerFactor 100% output power 0.96 -
Battery voltage lamp ignition 198-254 V
Battery voltage running lamps 176-254 V
Overvoltage protection 320 V 48 hr
Overvoltage protection 350 V 2 hr
Max ballast on MCB(16 A type B) 28 ×
Crestfactor 1.7 (max) -
Hum and Noise level Inaudible
Total Harmonic Distortion EUR 15%
Cable-Cap outputwires to earth 120 pF
Cable-Cap outputwires mutual 120 pF
Conn.type input terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Conn.type output terminals WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Max. cable length Device/Lamp 2.00m
Max. cable length Hot Wires 0.75m
Striplength 8.0-9 mm
Dual fixture Master/Slave Yes [Master/Slave operation possible]
Wcs Input terminals 0.50 - 1 mm²
Wcs Output terminals 0.50 - 1 mm²
Wcs auto insertion (ALF/ADS) 0.5 mm²
Rated Lamp Power on TL-D 36 W
System Power on TL-D 36.5 W
Lamp Power on TL-D 32 W
Power Loss on TL-D 4.5
T-case life 75 C
T-case maximum 75 (max) °C
T-ignition –15 (min), 50 (max) °C
T-ambient –15 (min), 50 (max) °C
T-storage -40 (min), 80 (max) °C

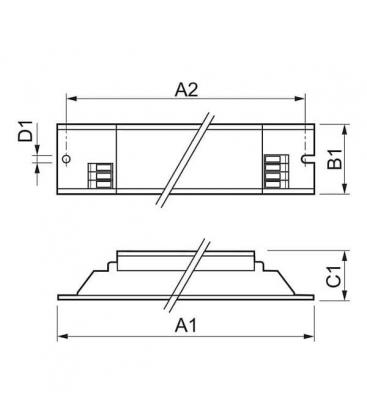

Length A1 280 mm
Fixing Hole Distance Length A2 265 mm
Width B1 30 mm
Height C1 28 mm
Fixing Hole Diameter D1 4.2 mm
Approval marks ENEC / VDE-EMV
CE marking Yes
Temperature marking 110 [Yes]
Emergency standard IEC 60598-2-22
• Savings of 25% energy compared to electromagnetic “C-type” ballasts
• Instant start gives “direct” light
• HF-operation eliminates eye strain as caused by electromagnetic ballasts
• No igniter/capacitor needed, simplified wiring compared to Electromagnetic
• The HF-B TLD range has a robust design and meets internal safety, EMC and Immunity tests
• Offers the flexibility for simple wiring release possibility
• Including safety approbation via an external test-house covering IEC/EN 61347
• Automatic restart (after voltage dip or lamp exchange) ensures easy operation
Applications
• Designed for applications where lamps burn for a long period of time and switching cycle (on/off) is infrequent (e.g. maximum 3 times a day)
• Ideal for installations such as department stores, airports, offices
• Suitable for high risk or explosive areas
