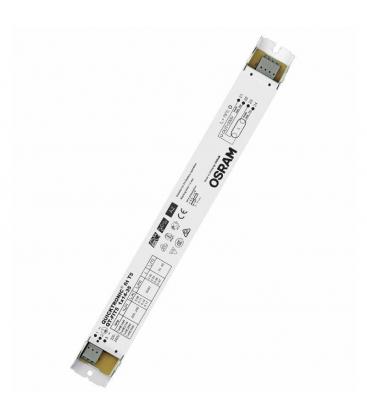

QT FIT 5 8 2x18 39W 220V Quicktronic
1010002035 | Manufacturer: Osram | EAN: 4008321873903 | MPN: QT-FIT-5-8-2X-18-39
More info - QT FIT 5 8 Electronic Ballast 39W 220V
The QUICKTRONIC FIT 5/8 is an electronic control gear (ECG) designed for T5 /16 mm and T8 /26 mm lamps. With a wide input voltage range of AC 198-264 V and DC 185-264 V, it offers reliable performance. This ECG has a long lamp life of up to 50,000 hours and features automatic restart after lamp replacement. It is suitable for various applications such as open-plan offices, public buildings, strip lighting, and emergency lighting . The QUICKTRONIC FIT 5/8 ensures perfect lamp start even with motion sensors and provides high energy efficiency due to its cut-off technology.
Input voltage AC 198 - 264 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage DC 185-264 V
Operating frequency 40-50 kHz
Max. ECG no. on circuit breaker 10 A (B) 12
Max. ECG no. on circuit breaker 16 A (B) 19
Inrush current 40 A
Starting time 2s

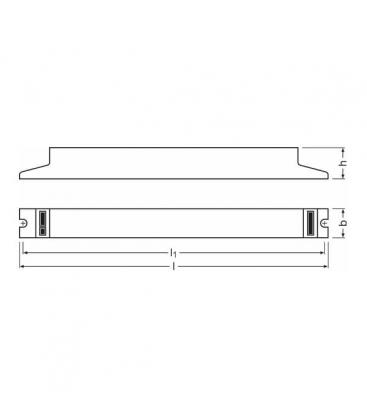

Length 280 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 270 mm
Cable cross-section, output side 0.5-1.5 mm²
Cable cross-section, input side 0.5-1.5 mm²
Ambient temperature range –15…+50 °C
ECG lifetime 50000 h
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval CE / VDE / ENEC 10 / VDE-EMC
EEI - Energy Label A2
Standards Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015: 2006 + A1: 2007 + A2: 2009/Acc. to EN 61000 - 3-2/IEC 61000 - 3-2/Acc. to EN 61547/IEC 61547
Protection class I
Type of protection IP20
Benefits
• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors
• VDE/VDE EMC certified system
• Very high energy efficiency due to cut-off technology
Areas of application
• Open-plan offices, corridors and storage rooms
• Public buildings
• Strip lighting
• Suitable for emergency lighting (DC operation)
• Suitable for luminaires of protection class I
• Modernization of existing systems
