T5 High Efficiency fluorescent lamps
Master TL5 39W 865 HO High Output G5
643872 | Manufacturer: Philips | EAN: 8711500643872 | MPN: 927928586555
More info - Master TL5 39W 865 HO High Output G5
The Master TL5 39W 865 HO High Output G5 is a high-performance lamp with a tube diameter of 16mm. It offers exceptional light output, making it perfect for offices, schools, retail environments, and industrial settings. With its slim design and efficient fluorescent coating, this lamp provides excellent lumen maintenance and color rendering. Designed for use with electronic gear and dimming capabilities, it delivers maximum light output at approximately 35°C when used with an electronic driver featuring a cut-off feature. Suitable for operation in temperatures ranging from -15 to 50°C.
System Description High Output
Cap-Base G5
Cap-Base Information Green Plate
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 19000 h
Life to 50% fail Preheat EL,3h 24000 h
Color Code 865 [CCT of 6500 K]
Color Rendering Index 85 Ra8
Color Designation Cool Daylight
Color Temperature 6500 K
Luminous Flux EL 25 °C, Rated 2875 lm
Luminous Flux EL 25 °C, Nominal 2875 lm
Luminous Flux Lamp EL 35 °C 3250 lm
Luminous Efficacy Rated HF 25 °C 76 lm/W
Luminous Efficacy Rated HF 35 °C 86 lm/W
LLMF HF 2000 h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 313 -
Chromaticity Coordinate Y 337 -
Lamp Wattage 39 W
Lamp Wattage EL 25 °C, Rated 38 W
Lamp Wattage EL 25 °C, Nominal 39 W
Lamp Wattage EL 35 °C 38 W
Lamp Voltage EL 25 °C 118 V
Lamp Voltage EL 35 °C 112 V
Lamp Current EL 25 °C 0.325 A
Lamp Current EL 35 °C 0.340 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 42 kWh
Calibration Current 0.340 A
HF Generator Rated Voltage 224 V
Resistor 330 Ω

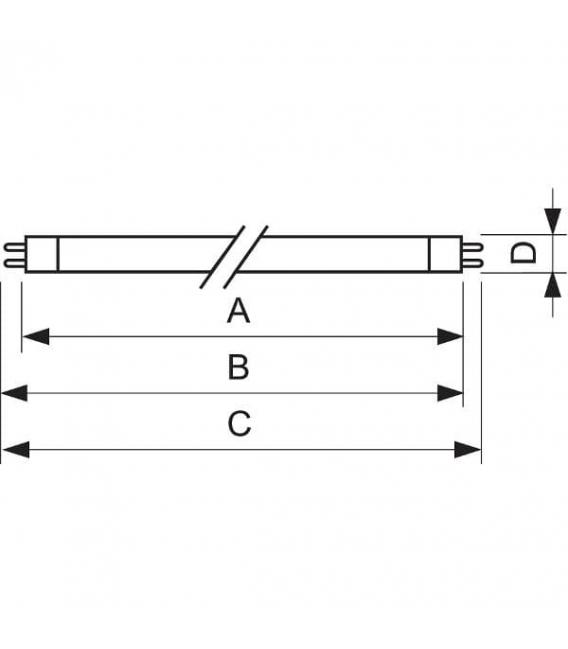

Base Face to Base Face A 849 (max) mm
Insertion Length B 853.7 (min), 856.1 (max) mm
Overall Length C 863.2 (max) mm
Diameter D 17 (max) mm
This TL5 lamp (tube diameter 16 mm) offers high light output. The TL5 HO lamp is optimized for installations requiring high light output and offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.
Features
• 40% thinner than TL-D lamps
• Designed for high llight output and system miniaturization
• Highly efficient 3-band fluorescent coating in combination with precoating
• Specifically designed for operation with electronic gear and well-suited for dimming
• Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used
• Can be ignited from –15 to +50 °C
Applications
• The combination of a compact lamp and high lumen package of the MASTER TL5 HO offers exciting opportunities for architectural lighting and customized solutions
• Offers economic solutions with high-ceiling lighting in shops, industry and department stores
• The high luminous flux gives optimal results in aesthetic pendants and furniture-mounted luminaires in offices, workshops, restaurants and reception areas
