Ballasts, Magnetic
Ballast Q400.612 220V 50Hz HM
673295 | Manufacturer: Vossloh Schwabe | EAN: 4014364673295 | MPN: 570971
More info - Ballast Q400.612 220V Magnetic HM
The Ballast Q400.612 220V 50Hz HM is a standard magnetic ballast , vacuum-impregnated with polyester resin for durability. With screw terminals ranging from 0.5 to 2.5 mm², it offers easy installation and protection class I safety standards. Designed for HM lamps, it provides an output of 400W at a voltage of 230V and frequency of 50Hz. Its compact shape measures at 53 × 66 mm, while its overall dimensions are 180 ×155 ×110 mm (a × b × c). Achieve energy efficiency with EEI=A3 rating!
Standard ballast
Vacuum-impregnated with polyester resin
Screw terminals: 0.5 - 2.5 mm²
Protection class I
Lamp type: HM
Output [W]: 400
Voltage [V]: 230
Frequency [Hz]: 50

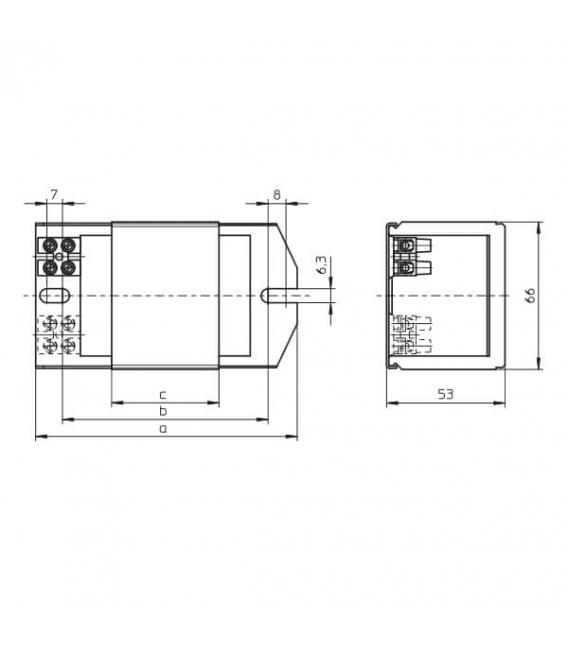

Shape: 53 × 66 mm
Dimensions (a × b × c): 180 × 155 × 110 mm
Energy efficiency: EEI=A3
