Ballasts, Magnetic
Ballast LN58.116 220V 50Hz T U
508186 | Manufacturer: Vossloh Schwabe | EAN: 5081869089998 | MPN: 508186
More info - Ballast LN58.116 220V 50Hz Magnetic
The Ballast LN58.116 220V 50Hz T U is a standard magnetic ballast for traditional lamps and fluorescent tubes. It features vacuum-impregnated polyester resin, push-in terminals for leads, and IDC terminals for automatic luminaire wiring. With protection class I and energy efficiency rating B2, this ballast is compatible with TC-DD and T-U lamps, providing an output of 58W. Its compact shape (28 × 41 mm) and dimensions (190 × 180 × 92 mm) make it a reliable choice for your lighting needs.
Standard ballast
Vacuum-impregnated with polyester resin
Push-in terminal for leads: 0.5 - 1 mm²
For the automatic luminaire wiring: IDC terminals for leads H05 V-U 0.5
Protection class I
Lamp type: TC-DD, T-U
Output [W]: 58 for compact fluorescent lamps T-U (2G13)
Voltage [V]: 230
Frequency [Hz]: 50
Shape: 28 × 41 mm

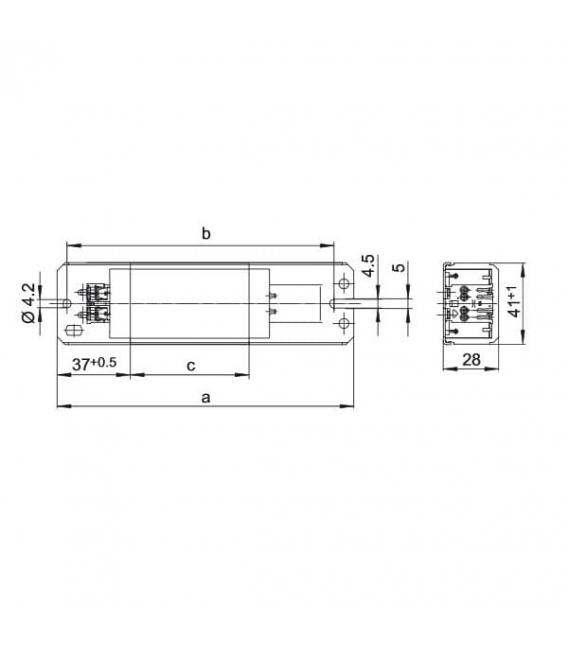

Dimensions (a × b × c): 190 × 180 × 92 mm
Energy efficiency: B2
