LED driver PWM 60 24 24V 60W IP67

Discover the future of lighting control with our Dimmable LED Driver PWM 60. Designed for superior performance and versatility, this advanced LED driver is a game-changer for your lighting solutions. Whether you're a professional lighting designer or a DIY enthusiast, our Dimmable LED Driver PWM 60 is the key to achieving the perfect ambiance in any environment.

Description:

Our Dimmable LED Driver PWM 60 is the pinnacle of lighting control technology. With a universal AC input range of up to 305 VAC, this driver is compatible with a wide range of power sources, making it incredibly versatile for various applications. Built-in active PFC (Power Factor Correction) ensures efficient power utilization, saving you energy and reducing operating costs.

The constant voltage PWM style output guarantees stable and flicker-free illumination, perfect for creating a comfortable and visually appealing lighting atmosphere. Plus, it comes equipped with a 3-in-1 dimming function, allowing you to adjust brightness via 0~10 VDC, PWM signal, or resistance, giving you full control over your lighting.

With a dimming range of 0-100%, you can achieve the exact lighting intensity you desire. This driver boasts an impressive efficiency rate of up to 90%, ensuring that your LEDs shine brightly while keeping your energy bills low. Safety is paramount, and our driver is equipped with multiple protections, including short circuit, overload, over voltage, and over-temperature safeguards.

This Class II power unit eliminates the need for a ground connection (FG) and is suitable for dry, damp, or wet locations, thanks to its IP67 rating. Even when not in use, it consumes minimal power (<0.5 W), contributing to energy conservation. Backed by a 5-year warranty, you can trust in the durability and reliability of this product.

Features:

• Universal AC input (up to 305 VAC)
• Built-in active PFC function
• Constant voltage PWM style output

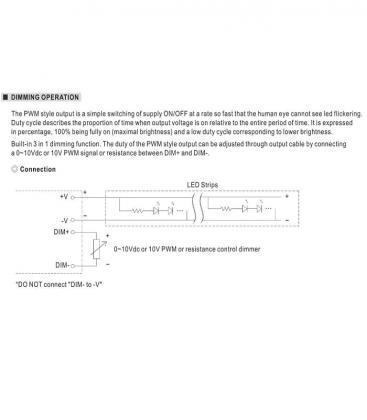

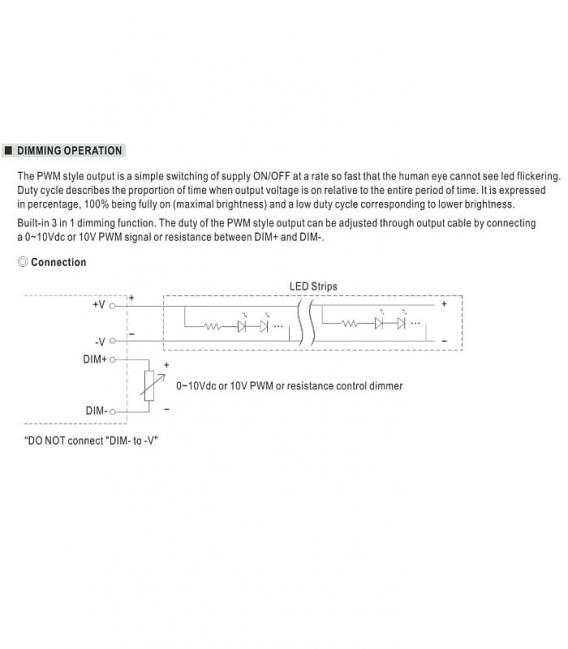

• 3-in-1 dimming function (0~10 VDC, PWM signal, resistance)
• Dimming range: 0-100%
• High efficiency up to 90%
• Multiple protections: Short circuit, overload, over voltage, over temperature
• Class II power unit, no FG
• Suitable for dry, damp, wet locations (IP67)
• Low no-load power consumption (<0.5 W)
• UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384, IP67 safety standards

Application:

Our Dimmable LED Driver PWM 60 is perfect for a wide range of applications, including but not limited to:

• Architectural lighting
• Landscape lighting
• Indoor and outdoor signage
• Display lighting
• Residential and commercial lighting
• Hospitality and restaurant lighting
• Stage and entertainment lighting
• Street and area lighting

Benefits:

• Achieve precise lighting control with 3-in-1 dimming options
• High efficiency reduces energy consumption and operating costs
• Comprehensive safety protections ensure peace of mind
• Versatile and suitable for various environments
• IP67 rating for reliable performance in wet conditions
• 5-year warranty for added confidence in your investment

Technical Data:

• Input voltage range: 90-305 VAC / 127-431 VDC
• Input AC current: 0.8 A / 115 VAC, 0.4 A / 230 VAC, 0.32 A / 277 VAC
• Output: DC 24 V / 2.5 A / 60 W
• Dimming range: 0-100%
• Input frequency range: 47-63 Hz
• Efficiency: 89%

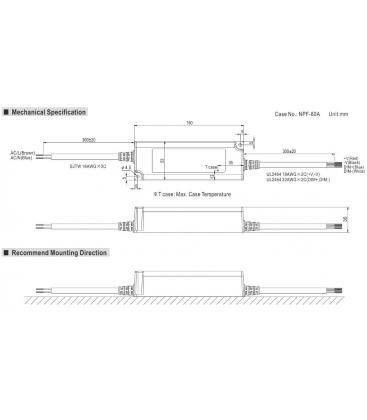

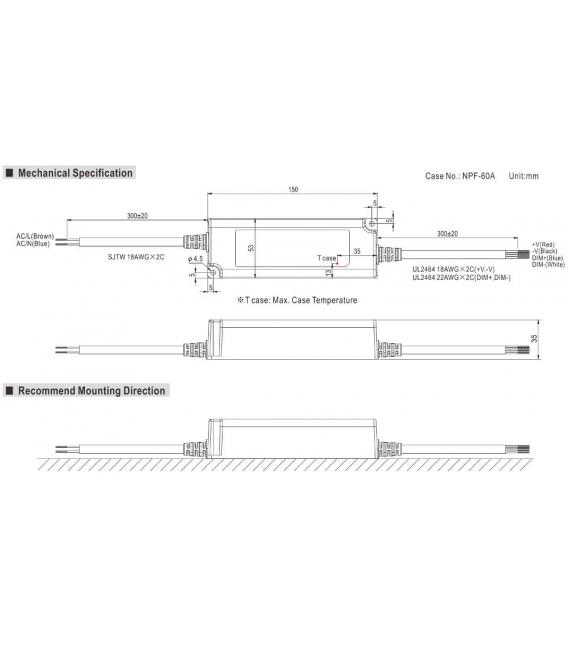

• Dimensions:150 × 53 × 35 mm
• Weight: 0.49 kg

Elevate your lighting projects with the Dimmable LED Driver PWM 60. It's more than just an LED driver; it's a solution that empowers you to create the perfect lighting atmosphere. With its advanced features, exceptional efficiency, and robust safety measures, this driver is a must-have for professionals and enthusiasts alike. Trust in its reliability, and let your creativity shine with the Dimmable LED Driver PWM 60.

Suitable for:
• Led strip lighting
• Indoor Led lighting
• Led decorative lighting
• Led architecture lighting

Download PWM-60-SPEC.pdf
