Dimmable, 12V-24V, Mean Well PWM
LED driver PWM 90 24 24V 90W IP67
PWM9024 | Manufacturer: Mean Well | MPN: PWM-90-24
More info - Brighten Your Home with dimmable LED Driver PWM 90 24 24V
Introducing the Dimmable LED Driver PWM 90 24 24V 90W IP67, a versatile solution for upgrading your lighting control. With universal AC input up to 305 VAC and active PFC function, this driver offers energy efficiency up to 90%. The constant voltage PWM output ensures stable performance, while the dimming range of 0~100% allows customizable lighting. Featuring comprehensive protection features and an IP67 rating, this driver is suitable for various indoor and outdoor applications. Backed by a reassuring 5-year warranty, it's the perfect choice for reliable lighting setups with LED strips or modules.
Introducing the Dimmable LED Driver PWM 90 24 24V 90W IP67
Elevate your lighting experience with our Dimmable LED Driver PWM 90 24 24V 90W IP67, a cutting-edge solution designed to revolutionize your lighting control. This versatile device combines innovative features with top-notch safety standards, ensuring you have the perfect lighting environment for any setting. Dive into the world of energy efficiency and precision lighting control with our Dimmable LED driver.
Unlock Precision Lighting Control
Our Dimmable LED Driver PWM 90 24 24V 90W IP67 offers the pinnacle of lighting control, suitable for various applications. Its universal AC input boasts a full range of up to 305 VAC, providing exceptional flexibility for a wide array of setups. With built-in active PFC function, you'll experience unparalleled energy efficiency, reaching up to 90%. This driver is equipped with a constant voltage PWM style output, ensuring a stable and consistent lighting performance.
Key Features:
- Built-in active PFC function for superior energy efficiency
- Constant voltage PWM style output for stable lighting

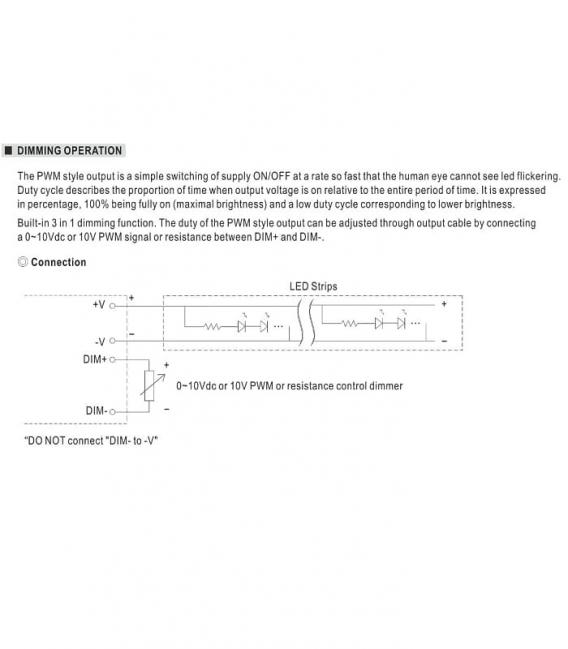

- 3 in 1 dimming function (0~10 VDC or PWM signal or resistance)
- Dimming range: 0~100% for customizable lighting
- Comprehensive protection features: Short circuit, Overload, Over voltage, Over temperature
- Class II power unit for added safety, no FG
- Suitable for dry, damp, or wet locations
- Minimal no-load power consumption (< 0.5 W)
- IP67 rating for outstanding durability
- Backed by a reassuring 5-year warranty
Illuminate with Confidence
Application
The Dimmable LED Driver PWM 90 24 24V 90W IP67 is the perfect choice for a wide range of applications. Whether you need precise lighting control for residential spaces, commercial environments, or outdoor installations, this driver delivers exceptional performance. Its dimming range from 0~100% ensures that you can create the ideal ambiance for any occasion. Plus, the Class II power unit and IP67 rating guarantee safety and reliability, even in challenging conditions.
Benefits that Shine Bright:
- Energy-efficient operation saves on electricity bills
- Versatile dimming options for tailored lighting experiences
- Robust protection features for peace of mind
- Suitable for various indoor and outdoor settings
- Long-lasting performance backed by a 5-year warranty
Technical Electrical Data:
- Input voltage range: 90
305 VAC / 127431 VDC - Input AC current: 0.95 A /115 VAC, 0.5 A / 230 VAC, 0.4 A / 277 VAC
- Output: DC 24 V / 3.75 A / 90 W
- Dimming range: 0~100%
- Input frequency range: 47~63Hz
- Efficiency: 90.5%
- Dimensions:171 × 63 × 37.5 mm
- Weight: 0.77 kg
The Dimmable LED Driver PWM 90 24 24V 90W IP67 is a game-changer in the world of lighting control. With its advanced features, robust safety standards, and energy-efficient operation, it offers unparalleled lighting precision for various applications. Illuminate your space with confidence, knowing you have the best in the industry backing your lighting needs.
Suitable for:
• Led strip lighting
• Indoor Led lighting
• Led decorative lighting
• Led architecture lighting
