G12
G12 HCI-T 150W 930 Warm White
682055 | Manufacturer: Osram | EAN: 4052899372375 | MPN: HCI-T-150-930
More info - 150W G12 Lamp HCI-T 930 Warm White Illumination
G12 Metal Halide Lamp HCI-T 150W 930 Warm White: High-efficiency metal halide lamp with ceramic technology for enclosed luminaires. Excellent color rendering and stability, with UV values below permitted thresholds. Ideal for shop interiors, museums, factories, and outdoor use in suitable luminaires.
Nominal wattage 150 W
Lamp current 1.8 A
Rated wattage 147 W
PFC capacitor at 50 Hz 20µF
Ignition voltage 3.6 / 5 kVp
Energy consumption 162 kWh/1000 h
Luminous flux 15100 lm
Color rendering index Ra89
Color temperature 3000 K
Luminous efficacy 103 lm/W
Light color 930
Rated LLMF at 2000 h 0.87
Rated LLMF at 4000 h 0.81
UV protection Yes

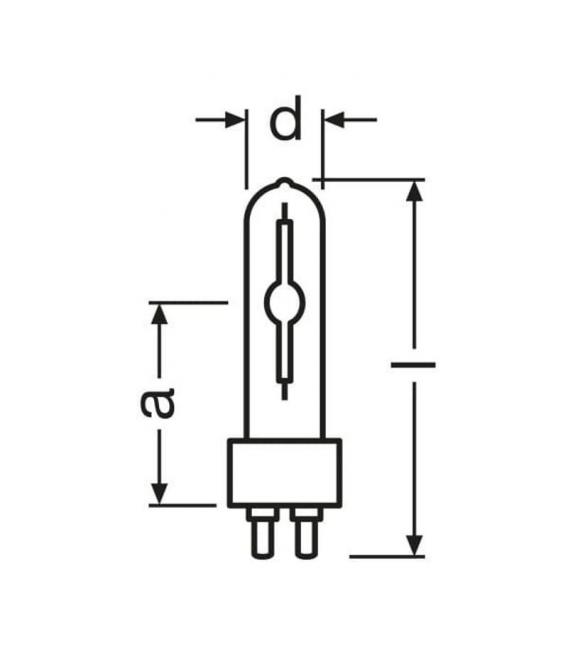

Diameter 25 mm
Length 105 mm
Light center length (LCL) 56 mm
Lamp mercury content 26.5 mg
Maximum permitted pinch temperature 350 °C
Maximum permitted outer bulb temperature 550 °C
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.98
Lifespan B50 15000 h
Operation mode LLMF/LSF ECG
Base (standard designation) G12
Design / version Clear
System guarantee level 3 (2/5)
Dimmable Yes
Burning position Any
Enclosed luminaire required Yes
Hot restart No
Energy efficiency class A+
Benefits
• Very high efficiency
• Good to excellent color rendering
• Very good color stability
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Applications
• Shop interiors, shop windows
• Shopping arcades
• Foyers, reception areas
• Museums, exhibitions
• Exhibition halls and trade fairs
• Factories and workshops
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
