G12 HQI-T 70W NDL UVS
524799 | Manufacturer: Osram | EAN: 4008321524799 | MPN: HQI-T-70-NDL
More info - Quality 70W NDL UVS G12 Lamp Single Pack HQI-T
G12 Metal Halide Lamp HQI-T 70W NDL UVS: High-efficiency metal halide lamp with quartz technology for enclosed luminaires. Good to excellent color rendering and UV values below maximum thresholds thanks to the UV filter. Ideal for shopping arcades, exhibition halls, factories, pedestrian zones, buildings, and outdoor use in suitable luminaires. Powerstar quartz technology offers reliable performance. Available in warm white (WDL) and neutral white (NDL) light colors.
Nominal wattage 70 W
Nominal voltage 100 V
Lamp current 0.9 A
PFC capacitor at 50 Hz 12µF
Ignition voltage 3.6 / 5 kVp
Rated wattage 73 W
Rated lamp efficacy (standard condition) 77 lm/W
Energy consumption 81 kWh/1000 h
Rated luminous flux 5800 lm
Color rendering index Ra80
Color temperature 4200 K
Light color 842
Rated LLMF at 2000 h 0.80
UV protection Yes

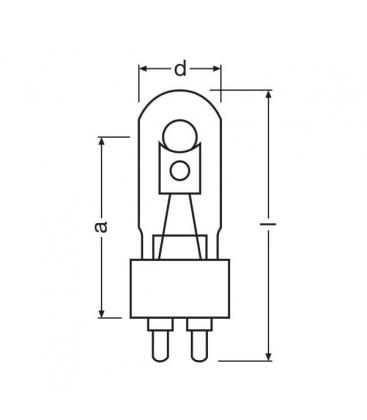

Diameter 25 mm
Length 84 mm
Light center length (LCL) 56 mm
Lamp mercury content 14.7 mg
Maximum permitted outer bulb temperature 500 °C
Rated lamp survival factor at 2000 h 0.87
Rated lamp survival factor at 4000 h 0.85
Lifespan B50 9000 h
Base (standard designation) G12
Design / version Clear
Burning position Any
Enclosed luminaire required Yes
Dimmable No
Energy efficiency class A
Benefits
• High efficiency
• Good to excellent color rendering
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
• Shopping arcades
• Exhibition halls and trade fairs
• Factories and workshops
• Pedestrian zones, public squares
• Buildings, monuments, bridges
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
Features
• Powerstar quartz technology
• Light colors: warm white (WDL), neutral white (NDL)
