G12 MasterColour CDM-T 20W 830
871562 | Manufacturer: Philips | EAN: 8727900871562 | MPN: 928183305125
More info - MasterColour CDM-T 20W 830 Premium G12 Lamp
The G12 Metal Halide Lamp MasterColour CDM-T 20W 830 is a single-ended, compact, high-efficiency discharge lamp. With its stable color over lifetime and crisp, sparkling light, it offers superior color quality and a beautiful sparkle. This lamp has a long life compared to incandescent and halogen lamps, resulting in low operating costs. Its relatively low heat output enhances comfort for shoppers and staff while reducing fading risks with its UV-Block feature. Perfect for shops, offices, public buildings, as well as decorative outdoor lighting applications like floodlighting and pedestrian areas.
Cap-Base G12
Bulb T19 [T 19 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 5% failures EL 9000 h
Life to 10% failures EL 10000 h
Life to 20% failures EL 12000 h
Life to 50% failures EL 15000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 81 (min), 84 (nom) Ra8
Color Designation Warm White
Color Temperature 3000 K
Color Temperature Technical 2980K
Luminous Flux Lamp EL 1800 lm
Luminous Efficacy Lamp EL 90 lm/W
Lumen Maintenance EL 2000 h 87%
Lumen Maintenance EL 5000 h 83%
Design Mean Lumens EL 1400 lm
Chromaticity Coordinate X 0.434 -
Chromaticity Coordinate Y 0.391 -
Lamp Wattage 20 W
Lamp Voltage 94 V
Lamp Current EL 0.215 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 3.5 mg
Energy consumption kWh/1000 h 22 kWh
Damage Factor D/fc 0.4 (max) -
PET (NIOSH) 8 (min) h500 lx
Bulb Temperature 250 (max) °C

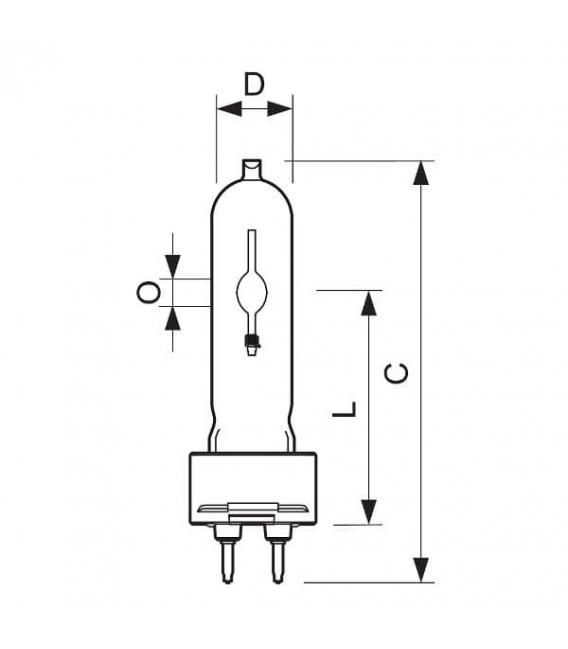

Reference Length A 90 (max) mm
Overall Length C 103 (max) mm
Diameter D 20 (max) mm
Light Center Length L 55 (min), 56 (nom), 57 (max) mm
Arc Length O 4 mm
Light Center Length L [inch] 2.21875 in
Overall Length C [inch] 3.9375 (max) in
Diameter D [inch] 0.75 in
Benefits
• Beautiful sparkle, reliable life
• Stable color impression over lifetime
• High lamp efficacy results in low operating costs and low heat generation
• Long lamp life compared with incandescent and halogen lamps
• Relatively low heat output enhances comfort for shoppers and staff
• All types are UV-Block for reduced fading risks
Features
• Crisp white light
• Superior color quality
• Allows small-size luminaires designs that give high beam intensities
Applications
• Shops and shop windows, offices and public buildings
• Decorative outdoor: floodlighting and pedestrian areas
