G12 MasterColour CDM-T 70W 740 Fresh

Cap-Base G12
Bulb T19 [T 19 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 50% failures EL 15000 h
Color Code 740 [CCT of 4000 K]
Color Rendering Index 67 (min), 70 (nom) Ra8
Color Designation Cool White
Color Temperature 4000 K
Color Temperature Technical 4000 K
Luminous Flux Lamp EL 6000 lm
Luminous Efficacy Lamp EL 82 lm/W
Lumen Maintenance EL 1000 h 95%
Design Mean Lumens EL 5000 lm
Chromaticity Coordinate X 0.380 -
Chromaticity Coordinate Y 0.382 -
Lamp Wattage 70 W
Lamp Voltage 83 V
Lamp Current EL 0.875 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Mercury (Hg) Content 6 mg
Damage Factor D/fc 0.3 (nom), 0.4 (max) -
PET (NIOSH) 8 (min), 30 (nom) h500 lx
Cap-Base Temperature 250 (max) °C
Pinch Temperature 350 (max) °C
Bulb Temperature 500 (max) °C

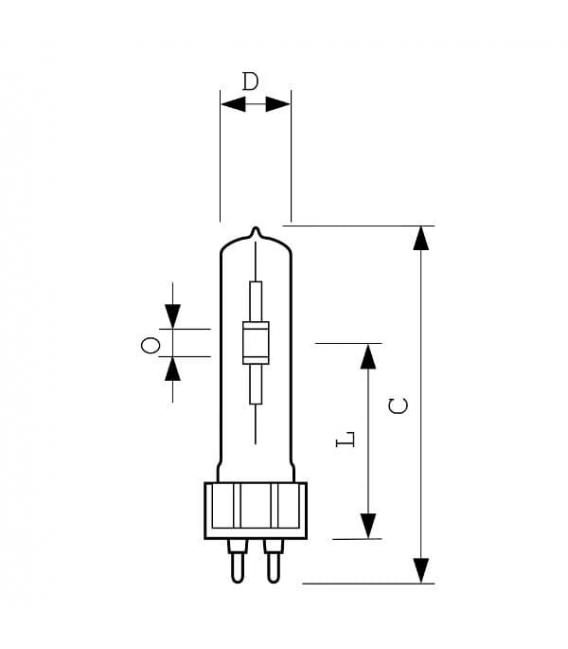

Reference Length A 90 (max) mm
Overall Length C 103 (max) mm
Diameter D 20 (max) mm
Light Center Length L 55 (min), 56 (nom), 57 (max) mm
Arc Length O 7.15 mm
Incredible colors, unbeatable efficiency
• Makes fresh food (meat, fish, fruit, vegetables) look incredibly beautiful with full colors
• Makes colored packaging material look vibrant
• Saves 30-50% energy compared to normal SDW!
Single-ended, high-efficiency Ceramic Metal Halide discharge lamp with special color enhancement properties.

Features
• Excellent color enhancement (red, green, orange, blue)
• Highest efficacy in fresh food lighting
• Long life with stable color
• Standard CDM shapes and sizes
• Can be operated on standard CDM gear

Applications
• Fresh food displays
