G12
G12 MasterColour CDM-T 70W 930 Elite
911411 | Manufacturer: Philips | EAN: 8727900911411 | MPN: 928185305131
More info - Elite MasterColour CDM-T 70W 930 Premium G12 Lamp
G12 Metal Halide Lamp MasterColour CDM-T 70W 930 Elite: High-efficiency, long-life ceramic metal halide lamp. Produces crisp white sparkling light with excellent color rendering. Perfect for accent and display lighting in retail, general indoor lighting, and outdoor area lighting. Unrivalled efficacy and stable color performance over time make this lamp a cost-effective choice.
Cap-Base G12
Bulb T19 [T 19 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 5% failures EL 9000 h
Life to 10% failures EL 10000 h
Life to 20% failures EL 12000 h
Life to 50% failures EL 15000 h
Color Code 930 [CCT of 3000 K]
Color Rendering Index 87 (min), 90 (nom) Ra8
Color Designation Warm White
Color Temperature 3000 K
Color Temperature Technical 2970K
Luminous Flux Lamp EL 7800 lm
Luminous Efficacy Lamp EL 106 lm/W
Lumen Maintenance EL 1000 h 97%
Lumen Maintenance EL 2000 h 95%
Design Mean Lumens EL 6730 lm
Chromaticity Coordinate X 0.435 -
Chromaticity Coordinate Y 0.396 -
Lamp Wattage 70 W
Lamp Voltage 85 V
Lamp Current EM 1 A
Lamp Current EL 0.86 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 6.6 mg
Energy consumption kWh/1000 h 80 kWh
Damage Factor D/fc 0.3 (max) -
PET (NIOSH) 8 (min) h500 lx
Cap-Base Temperature 250 (max) °C
Pinch Temperature 350 (max) °C
Bulb Temperature 500 (max) °C

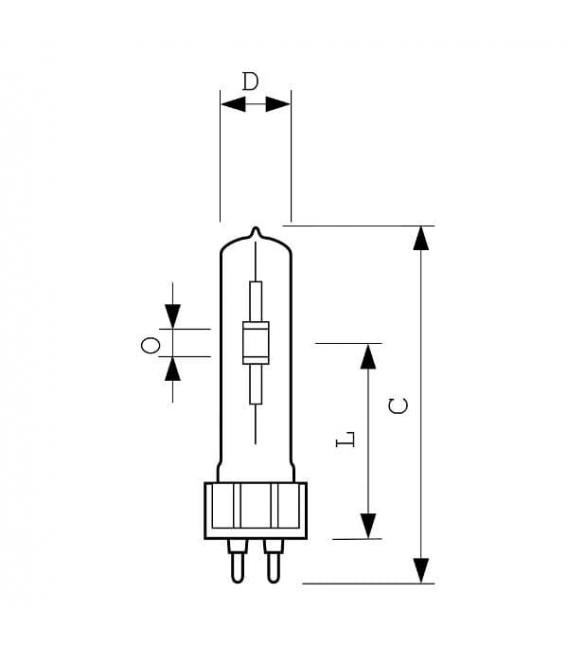

Reference Length A 90 (max) mm
Overall Length C 103 (max) mm
Diameter D 20 (max) mm
Light Center Length L 55 (min), 56 (nom), 57 (max) mm
Arc Length O 7.15 mm
Light Center Length L [inch] 2.16 (min), 2.20 (nom), 2.24 (max) in
Overall Length C [inch] 4 (max) in
Diameter D [inch] 0.79 (max) in
Perfect sparkle, unrivalled efficiency
• High-intensity beam of crisp white sparkling light makes merchandise look irresistible
• Stable color and lumen output over life keeps your store attractive season after season
• Lowest Total Cost of Ownership as a result of high efficacy (same light, less energy or same energy, more light) and long life
Features
• Crisp white sparkling light
• Excellent color rendering, with extra red
• High efficacy with unparalleled lumen maintenance
• Stable color performance over lifetime
• UV-blocking glass
Applications
• Accent and display lighting in retail
• General and decorative indoor lighting
• Outdoor area lighting
