G12 MasterColour CDM-T 100W 930 Elite

Cap-Base G12
Bulb T19 [T 19 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 50% failures EL 15000 h
Color Code 930 [CCT of 3000 K]
Color Rendering Index 89 (min), 92 (nom) Ra8
Color Designation Warm White
Color Temperature 3000 K
Color Temperature Technical 3000 K
Luminous Flux Lamp EL 11000 lm
Luminous Efficacy Lamp EL 110 lm/W
Lumen Maintenance EL 2000 h 95%
Chromaticity Coordinate X 0.432 -
Chromaticity Coordinate Y 0.399 -
Lamp Wattage 100 W
Lamp Voltage 88 V
Lamp Current EL 1.140 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 10.1 mg
Energy consumption kWh/1000 h 110 kWh
Damage Factor D/fc 0.2 (max) -
PET (NIOSH) 8 (min) h500 lx
Cap-Base Temperature 250 (max) °C
Pinch Temperature 350 (max) °C
Bulb Temperature 550 (max) °C

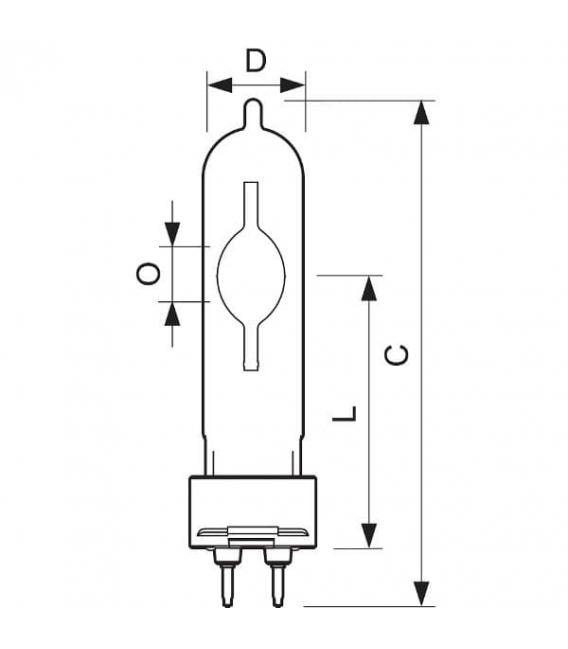

Reference Length A 96 (max) mm
Overall Length C 110 (max) mm
Diameter D 20 (max) mm
Light Center Length L 55 (min), 56 (nom), 57 (max) mm
Arc Length O 8.5 mm
Perfect sparkle, unrivalled efficiency
• High-intensity beam of crisp white sparkling light makes merchandise look irresistible
• Stable color and lumen output over life keeps your store attractive season after season
• Lowest Total Cost of Ownership as a result of high efficacy (same light, less energy or same energy, more light) and long life

Features
• Crisp white sparkling light
• Excellent color rendering, with extra red
• High efficacy with unparalleled lumen maintenance
• Stable color performance over lifetime
• UV-blocking glass

Applications
• Accent and display lighting in retail
• General and decorative indoor lighting
• Outdoor area lighting
