G12
G12 MasterColour CDM TP 70W 830 PG12 2
201270 | Manufacturer: Philips | EAN: 8711500201270 | MPN: 928086909230
More info - MasterColour CDM TP 70W 830 PG12-2 Premium G12 Metal Halide Lamp
The G12 MasterColour CDM TP 70W 830 PG12 2 offers high lamp efficacy for low operating costs and minimal heat generation. With a stable color impression over its long lifetime, this lamp outlasts incandescent and halogen lamps. Its relatively low heat output enhances comfort for shoppers and staff, while the UV-Block filtering reduces fading risks. Perfect for shops, offices, public buildings, and outdoor areas like floodlighting and pedestrian spaces.
Cap-Base PG12-2
Bulb T31 [T 31 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 5% failures 9000 h
Life to 20% failures 13000 h
Life to 50% failures 16000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 80 Ra8
Color Designation Warm White
Color Temperature 3000 K
Color Temperature Technical 3100 K
Luminous Flux Lamp EM 6000 lm
Luminous Efficacy Lamp EM 82 lm/W
Lumen Maintenance EM 2000 h 80%
Lumen Maintenance EM 5000 h 70%
Lumen Maintenance EM 10000 h 60%
Lumen Maintenance EM 15000 h 50%
Chromaticity Coordinate X 428 -
Chromaticity Coordinate Y 401 -
System Power EL 83 W
Lamp Wattage 70 W
Lamp Wattage EM 25 °C, Nominal 70 W
Lamp Wattage EM 25 °C, Rated 73 W
Lamp Voltage 90 V
Lamp Current EM 0.98 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 5.2 mg
Energy consumption kWh/1000 h 80 kWh
Damage Factor D/fc 0.3 (max) -
PET (NIOSH) 8 (min) h500 lx
Cap-Base Temperature 210 (max) °C
Bulb Temperature 400 (max) °C

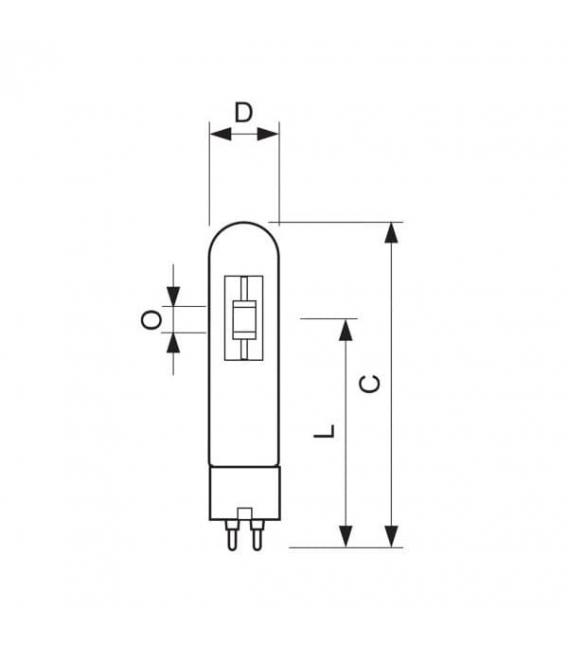

Overall Length C 149 (max) mm
Diameter D 32 (max) mm
Light Center Length L 89 (min), 91 (nom), 93 (max) mm
Arc Length O 7 mm
Features
• Crisp white light
• Superior color quality
• Lamp design is well-suited to be used in luminairs for power-spots (high intensity) and high-bay general lighting
• Double UV-Block quartz sleeves and a hard-glass outer bulb
Applications
• Shops and shop windows, offices and public buildings
• Decorative outdoor: floodlighting and pedestrian areas
