G23 2G7 - CFL

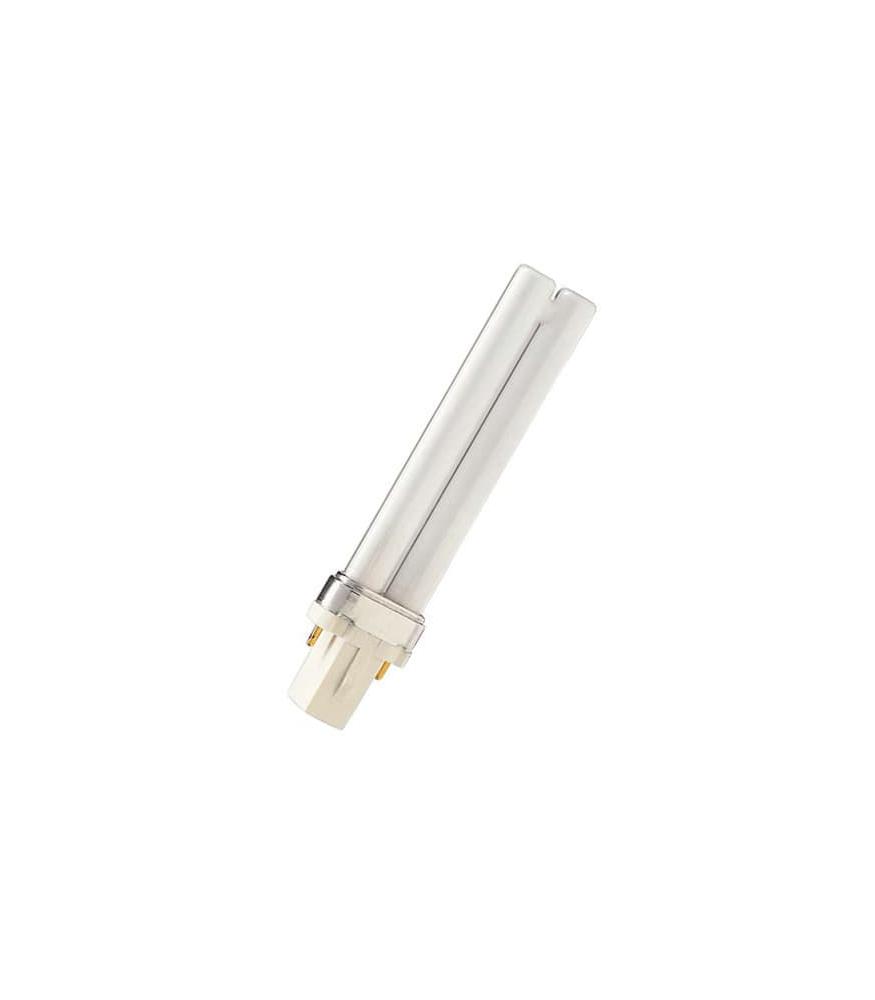

CFL Master PL-S 7W 830 2P
260628 | Manufacturer: Philips | EAN: 8711500260628 | MPN: 927935683011
More info - Master PL-S 7W 830 2P Compact Fluorescent Lamp
The Master PL-S 7W 830 2P is a compact energy-saving lamp that offers efficient and low-wattage lighting. Perfect for decorative and orientation purposes, this Philips-invented lamp utilizes bridge technology to deliver optimal performance, providing more light and higher efficacy compared to bended technology. Upgrade your lighting with this reliable and eco-friendly solution.
Cap-Base G23
Cap-Base Information 2P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 405 lm
Luminous Flux EM 25 °C, Nominal 400 lm
Luminous Efficacy Rated EM 25 °C 57 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 435 -
Chromaticity Coordinate Y 401 -
Lamp Wattage 7 W
Lamp Voltage 47 V
Lamp Current 0.175 A
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 9 kWh

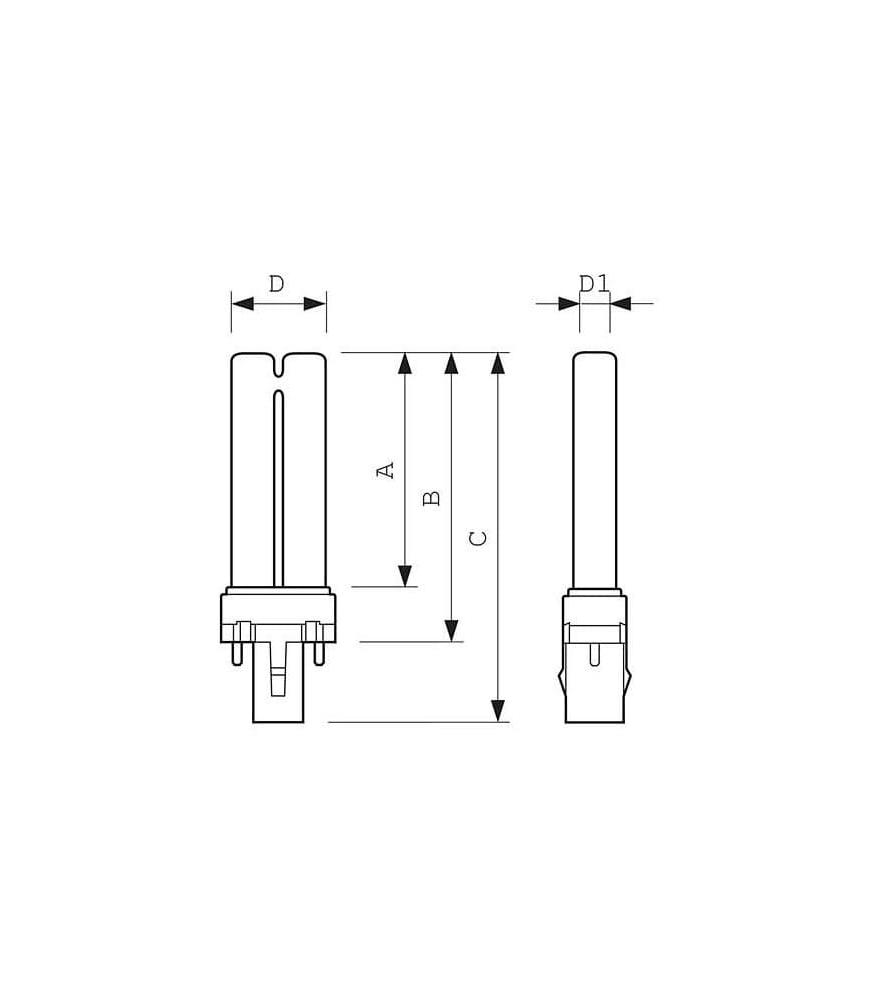

Base Face to Base Face A 97 (max) mm
Insertion Length B 113 (max) mm
Overall Length C 135 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
