PL-S G23 UV-C sterilization
PL-S G23 UV-C 5W OFR HNS S
229946 | Manufacturer: Osram | EAN: 4008321229946 | MPN: HNS-5-OFR
More info - 5W OFR HNS S Efficiency UV-C Sterilization Lamp
The PL-S G23 UV-C Sterilization Lamp 5W OFR HNS S offers impressive quality, low mercury content, and a long service life. Its special soft glass absorbs the 185nm line of mercury, ensuring environmentally friendly sterilization without ozone formation. Effective and chemical-free disinfection for air, water, and surfaces.
Nominal voltage 35 V
Construction wattage 0.005 kW
Construction voltage 35 V
Lamp current 0.18 A
Nominal wattage 5 W
Nominal current 0.18 A
Radiated power 200 - 280 nm (UVC) 1 W

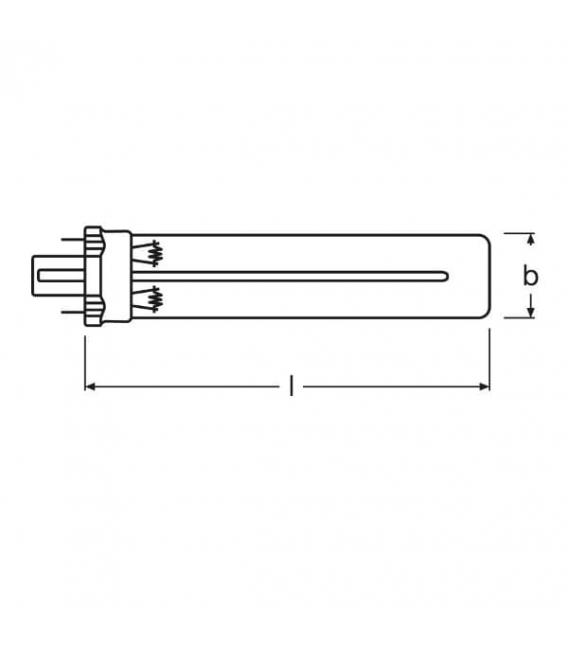

Diameter 28 mm
Length 108 mm
Nominal lamp life time 8000 h
Base (standard designation) G23
UV irradiance 253.7 nm measured at a distance of 1m at mid-lamp level, at 20 °C ambient temperature, free-burning. Between 0.3…3 m, the irradiance is inversely proportional to the square of the distance
Burning position s180
Benefits
• Effective and environment-friendly disinfection without chemicals
• Low mercury content
• Long lifetime due to specific coating
• Ozone-free
Applications
• Efficient disinfecting of air, water and surfaces
Features
• Dominant wavelength: 254 nm (OFR version)
SAFETY ADVICE
PURITEC germicidal lamps emit high-intensity UV radiation that can cause sunburn and conjunctivitis. The skin and eyes must therefore not be exposed to direct or reflected unfiltered radiation.
