G24 - CFL
CFL TC-D Dulux D 13W 865
487106 | Manufacturer: Osram | EAN: 4050300487106 | MPN: DULUX-D-13-865
More info - Compact Fluorescent Lamp TC-D Dulux D 13W 865 G24
Compact energy saving lamp TC-D Dulux D 13W 865: Ideal for miniature luminaires and downlights in shallow recesses. Provides pleasant warm light and excellent color rendering. Extremely economical with good quality of light, excellent luminous flux, and long service life. Suitable for offices, public buildings, shops, supermarkets, department stores, hotels, restaurants, and industry.
Nominal wattage 13 W
Nominal voltage 91 V
Rated lamp efficacy (standard condition) 66 lm/W
Rated wattage 13 W
Energy consumption 17 kWh/1000 h
Nominal luminous flux 855 lm
Color temperature 6500 K
Rated luminous flux 855 lm
Luminous flux at 25 °C 855 lm
Light color 865
Light color as per EN 12464-1 LUMILUX Cool Daylight
Rated LLMF at 2000 h 0.77
Luminance 4 cd/cm²

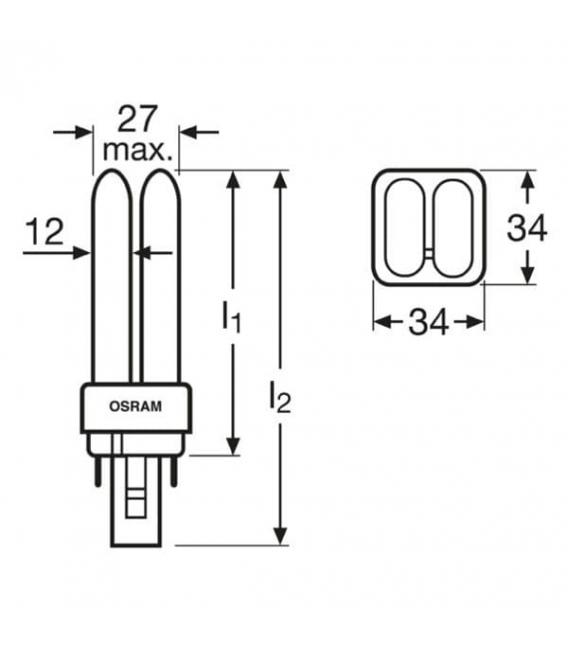

Overall length 140.5 mm
Tube diameter 12 mm
Length 138 mm
Length acc. to IEC standard 130 mm
Length with base excl. base pins/connection 115 mm
Lamp mercury content 2.5 mg
Rated ambient temp.w.max.luminous flux 25 °C
Nominal lamp life time 10000 h
Service life 6500 h
Rated lamp survival factor at 2000 h 0.99
Operation mode LLMF/LSF 50 Hz
Lifespan 10000 h
Rated lamp life time 10000 h
Base (standard designation) G24d-1
Appropriate disposal acc. to WEEE Yes
Suitable for indoor Yes
Energy efficiency class A
Benefits
• Extremely economical
• Good quality of light
• Excellent luminous flux
• Long service life
• Improved maintenance
Areas of application
• Offices, public buildings
• Shops
• Supermarkets and department stores
• Hotels, restaurants
• Industry
