Ballasts, Magnetic

... sential component of traditional lamp and fluorescent tube. Electric magnetic ballasts or electromagnetic (EM) ballasts are devices designed to limit the amount of current in an electrical circuit. A high initial current is required for proper starting, which must then be limited to prevent the lamp from burning out.

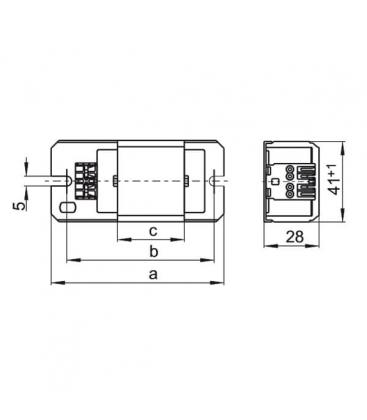

Magnetic ballast is actually an inductive coil. It actually looks like a transformer, a copper wire wound over a core material.

A well-known and widely used example is the inductive magnetic or electromagnetic ballast used in fluorescent lamps to limit the current through the tube, which would otherwise rise to destructive values due to the negative resistance of the tube.

These ballasts operate based on electromagnetic principles and consist of several components:

• Coils: Magnetic ballasts contain coils of wire, usually wound around a core of magnetic material. These coils are responsible for controlling the flow of electric current through the lamp.
• Starter Circuit: In fluorescent lamps, a magnetic ballast is often paired with a starter circuit. The starter helps initiate the discharge in the lamp by providing a momentary high voltage to ionize the gas within the lamp.
• Electromagnetic Induction: When an electric current passes through the coils of the ballast, it generates a magnetic field. This magnetic field induces a voltage in the gas within the lamp, causing it to ionize and produce light.
• Current Regulation: The ballast regulates the current flowing through the lamp to ensure stable and consistent light output. It limits the current once the lamp has started to prevent overloading and maintain efficient operation.

Applications:

• Magnetic Ballasts: Inductive magnetic ballasts were widely used in older fluorescent lamps and HID lamps for commercial and residential lighting. However, they have largely been phased out in favor of more efficient electronic ballasts that offer better energy savings and control.

Inductive magnetic ballasts play crucial roles in their respective applications, showcasing the importance of electromagnetic principles in various aspects of electronics and lighting technology.
