CFL Master PL-C 10W 830 4P

Cap-Base G24q-1
Cap-Base Information 4P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
LSF HF Preheat 2000 h Rated,3h 99%
Color Code 830 [CCT of 3000 K]
Color Rendering Index 83 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Nominal 600 lm
Luminous Flux EL 25 °C, Nominal 600 lm
Luminous Efficacy Rated EM 25 °C 63 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 440 -
Chromaticity Coordinate Y 403 -
Lamp Wattage 10 W
Lamp Wattage EM 25 °C, Nominal 10 W
Lamp Voltage EM 25 °C 63 V
Lamp Current EM 25 °C 0.190 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 11 kWh

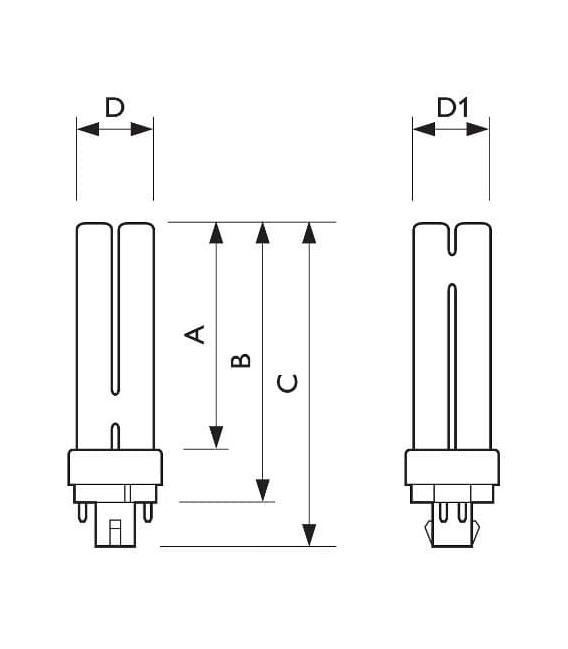

Base Face to Base Face A 75.7 (max) mm
Insertion Length B 94 (max) mm
Overall Length C 108.9 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
MASTER PL-C is an efficient medium-wattage compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 4-pin version is designed for operation on electronic HF control gear with integrated pre-heat and is provided with a plug-in/pull-out lamp base.

Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life

Applications
• Designed for general or supplementary lighting in professional or home environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
