G8.5 MasterColour CDM-TC-35W 842
209573 | Manufacturer: Philips | EAN: 8711500209573 | MPN: 928093805125
More info - MasterColour CDM-TC-35W 842 Premium G8.5 Lamp
G8.5 Metal Halide Lamp MasterColour CDM-TC-35W 842: Compact and efficient, this high-quality discharge lamp offers a stable color over its long lifetime. With crisp, sparkling light, it's perfect for accent lighting displays and general illumination. Enjoy the benefits of low operating costs and reduced fading risks with this UV-Block quartz bulb. Experience superior color quality and high beam intensities in a small-size luminaire design.
Cap-Base G8.5
Bulb T14 [T 14 mm]
Bulb Material UV-Block Quartz
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 50% failures EL 12000 h
Color Code 842 [CCT of 4200 K]
Color Rendering Index 85 Ra8
Color Designation Cool White
Color Temperature 4200 K
Color Temperature Technical 4200 K
Luminous Flux Lamp EL 3100 lm
Luminous Efficacy Lamp EL 79 lm/W
Lumen Maintenance EL 2000 h 85%
Chromaticity Coordinate X 0.374 -
Chromaticity Coordinate Y 0.369 -
Lamp Voltage 85 V
Lamp Current EL 0.46 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 2.7 mg
Energy consumption kWh/1000 h 41 kWh
Damage Factor D/fc 0.5 (max) -
PET (NIOSH) 8 (min) h500 lx
Pinch Temperature 300 (max) °C
Bulb Temperature 500 (max) °C

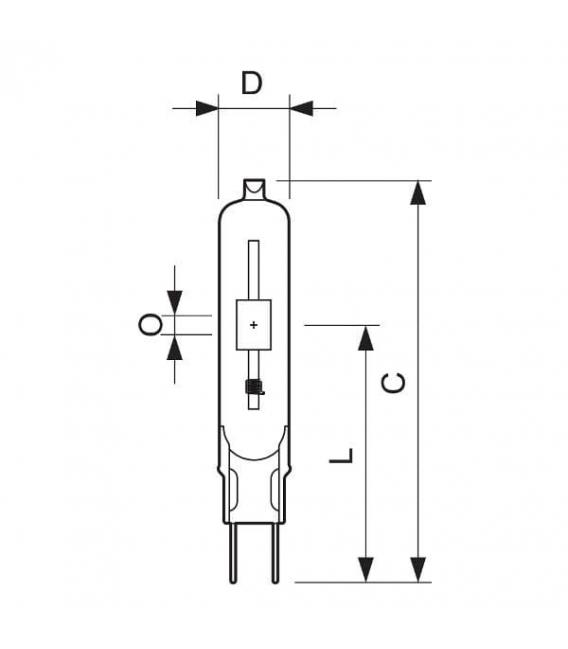

Overall Length C 85 (max) mm
Diameter D 15 (max) mm
Light Center Length L 51 (min), 52 (nom), 53 (max) mm
Arc Length O 5 mm
Light Center Length L [inch] 2 in
Overall Length C [inch] 3.34375 (max) in
Diameter D [inch] 0.5 in
Beautiful sparkle, reliable life
• Long lamp life compared with incandescent and halogen lamps
• UV-Block quartz outer bulb for reduced fading risks
• Stable color impression over lifetime
• High lamp efficacy results in low operating costs and low heat generation (which enhances comfort for shoppers and staff)
Features
• Crisp white light
• Superior color quality
• Allows very small-size luminaires designs that give high beam intensities
Applications
• Accent lighting display lighting with sparkling effect
• General and decorative lighting
