G8.5 MasterColour CDM-TC-70W 740 Fresh

Cap-Base G8.5
Bulb T14 [T 14 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 50% failures EL 15000 h
Color Code 740 [CCT of 4000 K]
Color Rendering Index 67 (min), 70 (nom) Ra8
Color Designation Cool White
Color Temperature 4000 K
Color Temperature Technical 3900 K
Luminous Flux Lamp EL 6000 lm
Luminous Efficacy Lamp EL 82 lm/W
Lumen Maintenance EL 2000 h 92%
Lumen Maintenance EL 12000 h 79%
Design Mean Lumens EL 6000 lm
Chromaticity Coordinate X 0.386 -
Chromaticity Coordinate Y 0.385 -
Lamp Voltage 83 V
Lamp Current EL 0.875 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No

Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 6 mg
Energy consumption kWh/1000 h 80 kWh
Damage Factor D/fc 0.4 (max) -
PET (NIOSH) 8 (min) h500 lx
Pinch Temperature 300 (max) °C
Bulb Temperature 550 (max) °C

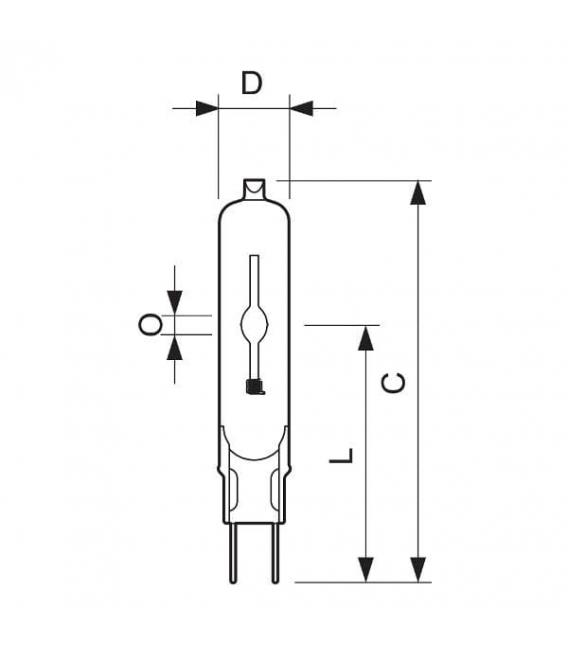

Overall Length C 85 (max) mm
Diameter D 15 (max) mm
Light Center Length L 51 (min), 52 (nom), 53 (max) mm
Arc Length O 7.15 mm
Light Center Length L [inch] 2 (min), 2.45 (nom), 2.9 (max) in
Overall Length C [inch] 3.3 (max) in
Diameter D [inch] 0.6 (max) in
Incredible colors, unbeatable efficiency
• Makes fresh food (meat, fish, fruit, vegetables) look incredibly beautiful with full colors
• Makes colored packaging material look vibrant
• Saves 30-50% energy compared to normal SDW!

Features
• Excellent color enhancement (red, green, orange, blue)
• Highest efficacy in fresh food lighting
• Long life with stable color
• Standard CDM shapes and sizes
• Can be operated on standard CDM gear

Applications
• Fresh food displays

It needs ballast	yes
Energy efficiency class	A+
Lamp holder, lamp socket	G8.5
Wattage - (W)	70
Luminous flux - (lm)	3800
Luminous efficacy - (lm / W)	86
Color temperature - (K)	4000
Light color code	740
Color rendering - (CRI)	70
Energy consumption - (kWh / 1000h)	70
Lifetime - (h)	15000
Factory packed - (pieces)	12
Bulb type	discharge lamps
Technology	HID
