G8.5 MasterColour CDM-TC-70W 930 Elite

Cap-Base G8.5
Bulb T14 [T 14 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 50% failures EL 15000 h
Color Code 930 [CCT of 3000 K]
Color Rendering Index 87 (min), 90 (nom) Ra8
Color Designation Warm White
Color Temperature 3000 K
Color Temperature Technical 2970K
Luminous Flux Lamp EL 7700 lm
Luminous Efficacy Lamp EL 105 lm/W
Lumen Maintenance EL 2000 h 95%
Design Mean Lumens EL 6650 lm
Chromaticity Coordinate X 0.435 -
Chromaticity Coordinate Y 0.396 -
Lamp Wattage 70 W
Lamp Voltage 85 V
Lamp Current EL 0.86 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 6.6 mg
Energy consumption kWh/1000 h 80 kWh
Damage Factor D/fc 0.3 (max) -
PET (NIOSH) 8 (min) h500 lx
Pinch Temperature 350 (max) °C
Bulb Temperature 550 (max) °C

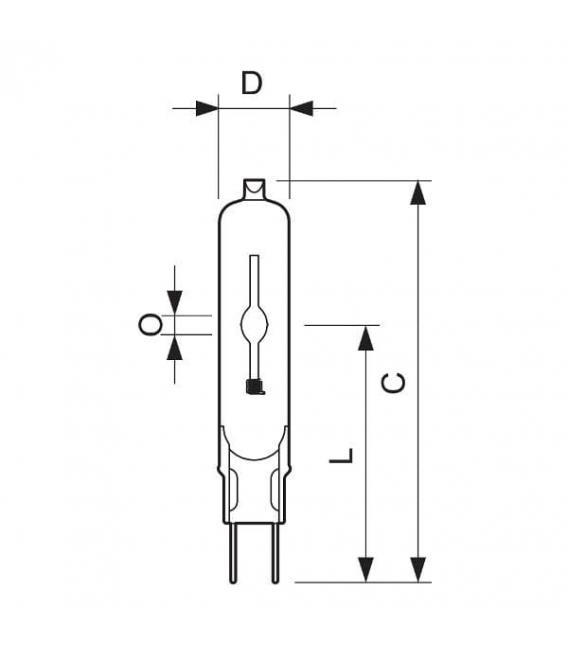

Overall Length C 85 (max) mm
Diameter D 15 (max) mm
Light Center Length L 51 (min), 52 (nom), 53 (max) mm
Arc Length O 7.15 mm
Light Center Length L [inch] 2 (min), 2.45 (nom), 2.9 (max) in
Overall Length C [inch] 3.3 (max) in
Diameter D [inch] 0.6 (max) in
Perfect sparkle, unrivalled efficiency
• High-intensity beam of crisp white sparkling light makes merchandise look irresistible
• Stable color and lumen output over life keeps your store attractive season after season
• Lowest Total Cost of Ownership as a result of high efficacy (same light, less energy or same energy, more light) and long life

Features
• Crisp white sparkling light
• Excellent color rendering, with extra red
• High efficacy with unparalleled lumen maintenance
• Stable color performance over lifetime
• UV-blocking glass

Applications
• Accent and display lighting in retail
• General and decorative indoor lighting
• Outdoor area lighting
