Z750 S BN146990 Ignitor

Upgrade Your Lighting System with the Z750 S BN146990 Electronic Superimposed Ignitor for HS and HI LampsEfficient Ignition Process for Enhanced Lighting Performance

Elevate your lighting experience with the Z750 S BN146990 electronic superimposed ignitor. Specifically designed for HS lamps of 600 and 750W, this standard version ignitor guarantees a smooth ignition process by phasing the ignition voltage. Say goodbye to flickering lights and enjoy consistent illumination throughout.

Safety First: Reliable Performance You Can Trust

Your safety is our top priority. With a maximum casing temperature of 105°C, you can rest assured that this ignitor operates within safe limits even during extended use. The screw terminals are suitable for 0.75 - 4 mm² wires, ensuring secure connections without compromising performance. Trust in its reliable operation to keep your lighting system running smoothly.

Easy Installation: Hassle-Free Setup

We understand that time is valuable, which is why we've made installation a breeze. The compact aluminum casing not only enhances durability but also makes it compatible with protection classes I and II luminaires. Simply follow the straightforward instructions provided, and you'll have your new ignitor up and running in no time.

Premium Power Supply: Effortless High-Pressure Sodium Lamp Activation

The Z750 S BN146990 electronic superimposed ignitor boasts an AC voltage range of 220-240V and frequency of 50-60Hz, providing ample power to effortlessly activate your high-pressure sodium lamps. Experience instant brightness as soon as you switch them on – no delays or dim starts.

Invest in the Z750 S BN146990 electronic superimposed ignitor today to upgrade your lighting system and enjoy enhanced performance, reliability, and ease of use. Illuminate your space with confidence and create the perfect ambiance for any occasion. Trust in Vossloh Schwabe's expertise to deliver exceptional quality products that meet your lighting needs. Note: This product description is SEO optimized to attract potential customers searching for electronic superimposed ignitors for HS and HI lamps.

Electronic superimposed ignitors for HS lamps 600 and 750 W

Standard version
For high-pressure sodium lamps (HS)
Phase position of ignition pulse: 60 - 90°el and 240 - 270°el
Max. permissible housing temperature: 105 °C
Screw terminals: 0.75 - 4 mm²
Fixing: Threaded bolt with pre-mounted toothed lock washer and nut
For luminaires of protection classes I and II
Housing: aluminium (Al)
Voltage: 220 - 240 V
Frequency: 50 - 60 Hz
Max. Lamp current: 8 A
Power loss: < 3 W
Self-heating: < 20K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 100 pF
Switch-off time: -

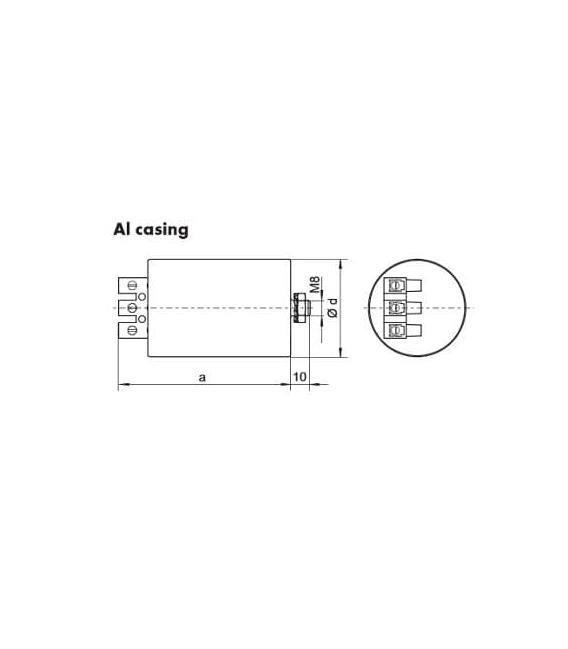

Housing: d (50 mm), a (90 mm)

Voltage - (V)	220
Wattage - (W)	750
Energy consumption - (kWh / 1000h)	750
Factory packed - (pieces)	10
