VS Capacitor 9mF 50 60Hz 250V 40942

Elevate the performance of your fluorescent and discharge lamps with the VS Capacitor 9mF. This Type A capacitor is specifically designed for T/TC fluorescent lamps and HS/HI/HM/LS discharge lamps, ensuring optimal functionality.

The VS Capacitor 9mF features a durable plastic casing that guarantees long-lasting performance. With its reliable construction, this capacitor provides excellent protection against external elements, extending the lifespan of your lighting setup.

With a capacity of 9mF, this capacitor offers ample power to support your lamps' operation. It effectively stabilizes voltage fluctuations and improves overall lamp efficiency, resulting in brighter illumination and reduced energy consumption.

The VS Capacitor 9mF is compatible with various lamp types, including T/TC fluorescent lamps and HS/HI/HM/LS discharge lamps. Whether you're upgrading existing fixtures or installing new ones, this versatile capacitor ensures seamless integration into your lighting system.

• Type: 40942
• Capacity: 9mF

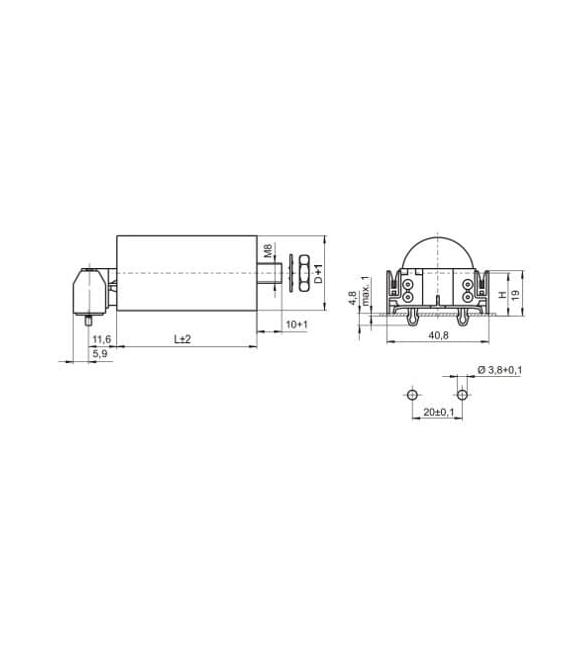

• Dimension / Length mm: 30/70
• Mounting: M8 × 10 bolt
• Filled / Dry: Dry
• Terminal: IDC / Push-in terminal

Technical Details of Vossloh-Schwabe Parallel Capacitors:

• All VS capacitors comply with IEC 61048 A2 (Safety) and IEC 61049 (Operation).
• Capacitors rated 250 V and 280 V also bear the ENEC mark.
• Nominal voltage:

  • 250 V, 50 - 60 Hz
  • 280 V, 50 - 60 Hz
  • 450 V, 50 - 60 Hz (dependent on type)
• Capacitance tolerance: ±10%; ±5%
• Temperature range: –40…85 °C

  Relative Humidity Load:


  - Class F for Type B capacitors
  -75% annual mean
  -95% peak value on 30 days
  -Class G for Type A capacitors
  -65% annual mean
  -85% peak value on 30 days




  Additional Information:

  - Capacitors must not be subjected to condensation.
  -Failure rates at maximum voltage, current, and temperature values are complied with =1 ‰ per1000 operating hours.
  -Permissible torque on the base screw:
  -M8 ×10 -5 Nm (aluminum casing)
  -M8 ×10 -2.2 Nm (plastic casing)
  -Split fixing pins with a clearance of20 mm for plastic casings(side clip)
  -Optional thermal fuse(Type A capacitors)
  Connecting wires:
  Parallel capacitors for fluorescent lamps:
  -Casing diameter25 -30 mm:0.5 -1mm²and IDC terminals for H05V-U0.5 conductors.
  -Casing diameter >30 mm:0.5 -1mm²parallel capacitors for high-pressure lamps.
  -Casing diameter25 -30 mm:0,5 -1mm²and IDC terminals for H05V-U0.5 conductors.
  -Casing diameter >30 mm:0.5 -1.5mm²

  Upgrade your lighting setup today with the VS Capacitor 9mF and experience enhanced lamp performance like never before!
