Lamp holders G13 T8
Lampholder Base G13 Push through 109332
109332 | Manufacturer: Vossloh Schwabe | EAN: 4019768055050 | MPN: 109332
More info - 109332 Lampholder Base G13 Push Through Design
Upgrade your lighting fixtures with the Lampholder Base G13 Push through 109332. Designed for T8 lamps, this lampholder features a starter attachment and push-in terminals suitable for 0.5 - 1 mm² wires. The PC casing and PBT GF frontplate ensure durability while the lateral fixing clips accommodate wall thicknesses of 0.4–2 mm. Perfect for strip lighting applications where the lampholder remains visible, this component meets luminaire directive EN 60598-1 Para. 8.2 standards. Enhance your luminaires with this high-quality G13 push-through lampholder today!
G13 push-through lampholders for lamps T8
With starter attachment

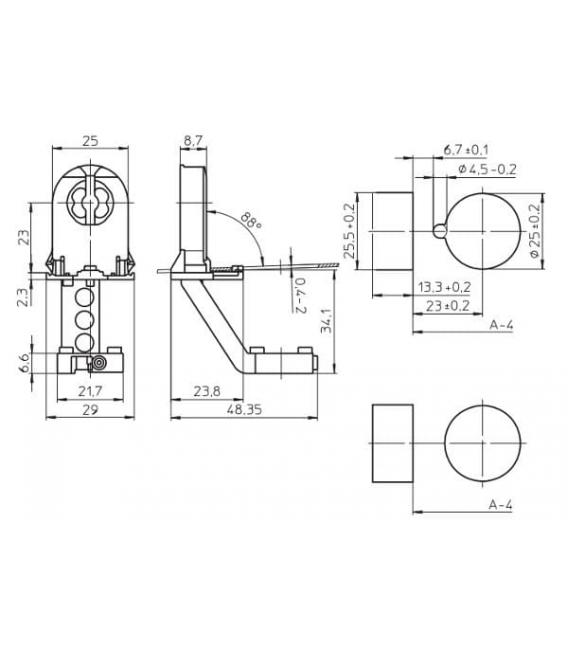

Lamp axis: 23 mm
Casing: PC, white, frontplate: PBT GF, white
T140, nominal rating: 2/500
Push-in terminals: 0.5 - 1 mm²
Lateral fixing clips for wall thickness 0.4–2 mm

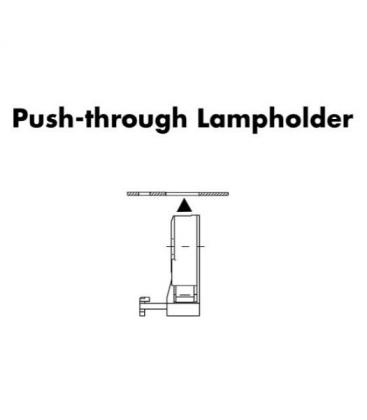

Push-through lampholders are inserted from below through a cut-out in the luminaire casing and are secured by lateral catches. This type of lampholder is frequently used in luminaires on which the lampholder remains visible from the outside, e.g. in so-called strip lighting. The electrical leads are laid beneath the sheet metal level. Luminaire directive EN 60598-1 Para. 8.2 must be observed with regard to the luminaire.
