Master Citywhite CDO TT Plus 250W 830 E40

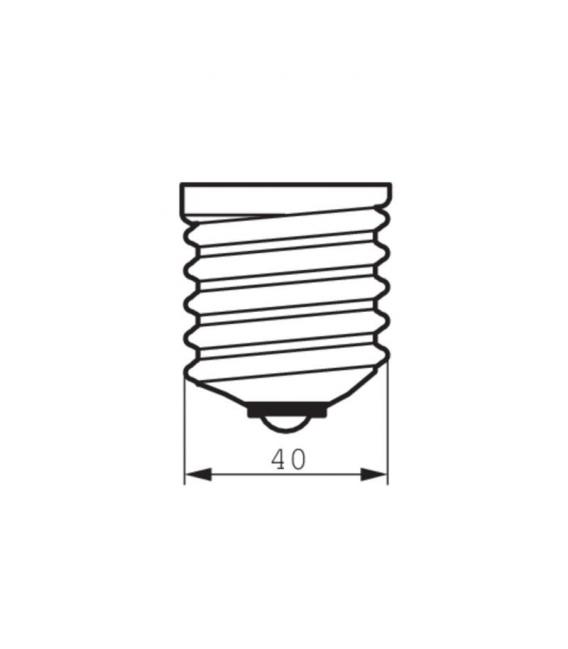

Cap-Base E40 [ E40]
Operating Position UNIVERSAL [ Any or Universal (U)]
Life to 5% Failures 14000 h
Life to 10% Failures 16000 h
Life to 20% Failures 18500 h
Life to 50% Failures 23000 h
LSF 2000 h Rated 99%
LSF 4000 hRated 99%
LSF 20000 hRated 71%
Color Code 830 [ CCT of 3000 K]
Luminous Flux (Rated) 28300 lm
Color Designation Warm White (WW)
Chromaticity Coordinate X 426
Chromaticity Coordinate Y 390
Correlated Color Temperature 3000 K
Luminous Efficacy (rated) 113 lm/W
Color Rendering Index 88
LLMF 2000 h Rated 95%
LLMF 4000 hRated 92%
Ratio Scotopic/Photopic Lumens 1.30
Power (Rated) 250 W
Lamp Current Run-Up (Max) 4.2 A
Lamp Current (EM) 2.92 A
Ignition Peak Voltage (Max) 5000 V
Ignition Supply Voltage (Min) 198 V
Re-Ignition Time (Min) (Max) 900s
Ignition Time (Max) 30s
Voltage (Max) 108 V
Voltage (Min) 92 V
Voltage 100 V
Dimmable Yes
Run-Up Time 90% (Max) 3 min
Bulb Finish Clear
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 25.3 mg
Energy Consumption kWh/1000 h 275 kWh
Pet (Niosh) (Min) 8 h / 500 lx
Bulb Temperature (Max) 450 °C
Cap-Base Temperature (Max) 250 °C

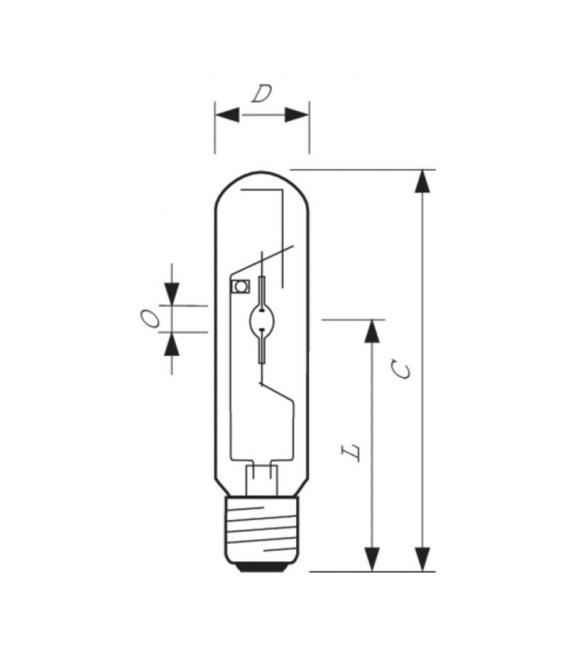

Overall Length C 257 (max) mm
Diameter D 47 (max) mm
Light Center Length L 157 mm
Arc Length O 12.1 mm

Benefits
• White warm color impression providing comfort and safety
• Easy upgrade from SON to white light without additional cost
• Flexible light levels and reduced energy consumption possible via dimming option

Features
• High-quality white light
• Directly retrofit on HPS (SON/NAV) installations for upgrade from yellow to white light
• Plus concept with high efficacy translates into high light output and improved lumen maintenance
• Good color rendering and harmonized warm white color temperature
• Dimmable

Applications
• Beautification and functional lighting for City centers, shopping centers and pedestrian areas, residential areas, road lighting and floodlighting

Warning & Safety
• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)
• The luminaire must be able to contain hot lamp parts if the lamp ruptures
• Lamps may use electromagnetic control gear or electronic gear suitable to drive CDO lamps (e.g. HID-PV Xt CDO)
• Control gear must include end-of-life protection (IEC61167, IEC 62035)
• Warm restart time can be up to 15 minutes; T15 ignitors therefore advised
• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
