Metal Halide
HQI-T 400W d pro E40 Working NAV-ballast
677860 | Manufacturer: Osram | EAN: 4008321677860 | MPN: HQI-T-400-D
More info - Quality HQI-T 400W d pro E40 Lamp for NAV-ballast
Metal Halide Lamp HQI-T 400W d pro E40 Working with NAV-ballast: High-efficiency metal halide lamp with quartz technology. Output up to 400W, long lifespan, and E40 screw base for easy handling. UV filter ensures low UV values below permitted thresholds. Ideal for factories, sports halls, industrial installations, and outdoor applications in suitable luminaires.
Nominal wattage 400 W
Nominal voltage 115 V
Lamp current 4 A
PFC capacitor at 50 Hz 45µF
Ignition voltage 4 / 5 kVp
Rated wattage 420 W
Rated lamp efficacy (standard condition) 81 lm/W
Energy consumption 462 kWh/1000 h
Rated luminous flux 34000 lm
Color rendering index Ra92
Color temperature 5500 K
Light color 960
Rated LLMF at 2000 h 0.83
UV protection Yes

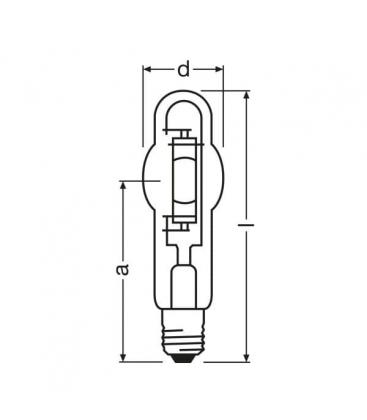

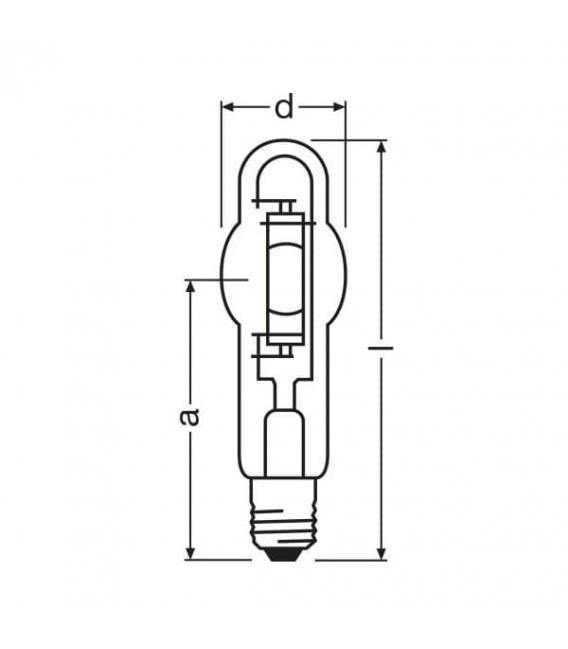

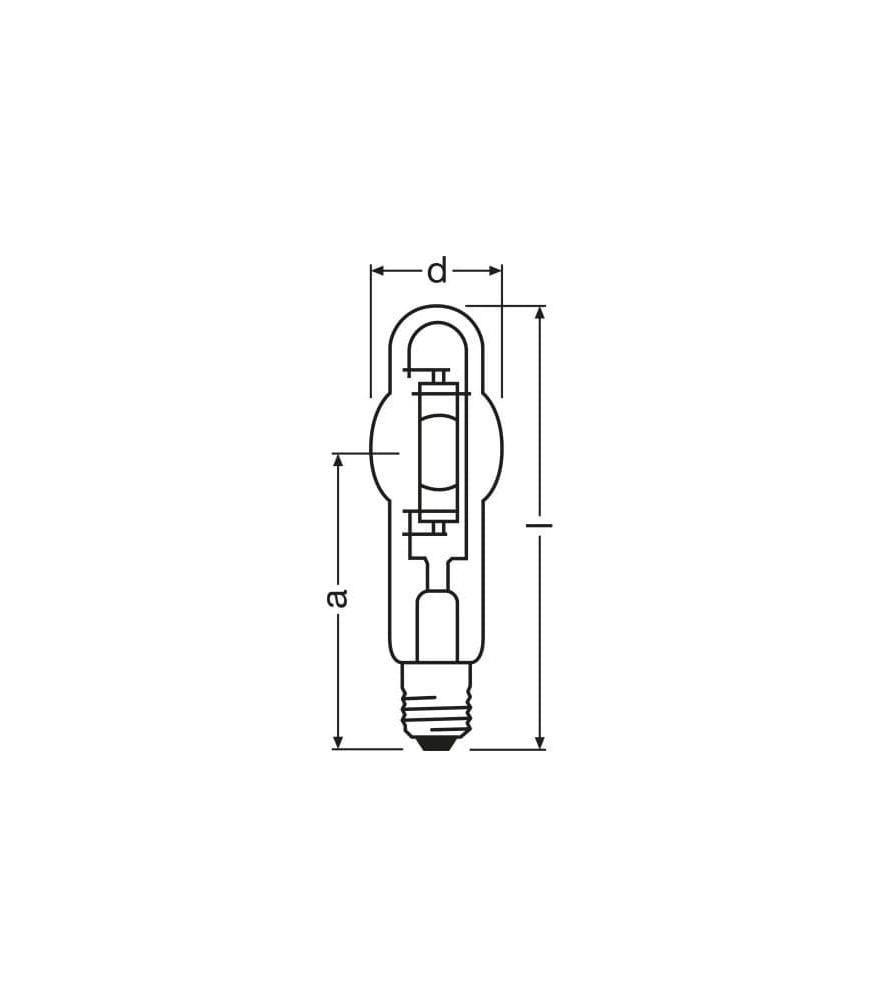

Diameter 62 mm
Length 285 mm
Light center length (LCL) 175 mm
Lamp mercury content 59 mg
Maximum permitted outer bulb temperature 500 °C
Maximum permitted base edge temperature 250 °C
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.98
Lifespan B50 16000 h
Base (standard designation) E40
Design / version Clear
With NAV control gear
Dimmable No
Burning position Any
Enclosed luminaire required Yes
Energy efficiency class A
Benefits
• Output of up to 400 W
• High efficiency
• Long life time
• E40 screw base for simple lamp handling
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Applications
• Factories and workshops
• Sports halls and multi-purpose halls
• Industrial installations
• Docks and port facilities
• Marshaling yards, container transshipment facilities
• Buildings, monuments, bridges
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
Features
• Powerstar quartz technology
• Light colors: neutral white (N), daylight (D)
