Metal Halide
HQI-T 2000W n SN super E40
348629 | Manufacturer: Osram | EAN: 4008321979087 | MPN: HQI-T-2000-N-SN
More info - Super E40 Lamp HQI-T 2000W n SN Premium Metal Halide
Metal Halide Lamp HQI-T 2000W n SN super E40 - High-efficiency metal halide lamp for enclosed luminaires. Outputting up to 2000W, these lamp have a long lifespan and utilize Powerstar quartz technology. Suitable for factories, sports halls, airports, and more. Designed with an E40 screw base for easy handling. Ideal for use in enclosed luminaires only. Choose from neutral white (N) or daylight (D) light colors.
Nominal wattage 2030 W
Rated wattage 2030 W
Lamp current 9.9 A
PFC capacitor at 50 Hz 37µF
Nominal voltage 220 V
Ignition voltage 0.75 / 1.3 kVp
Rated lamp efficacy (standard condition) 118 lm/W
Rated luminous flux 240000 lm
Color rendering index Ra 63
Color temperature 4550K
Light color 642
Rated LLMF at 2000 h 0.81
Rated LLMF at 4000 h 0.67
UV protection Yes

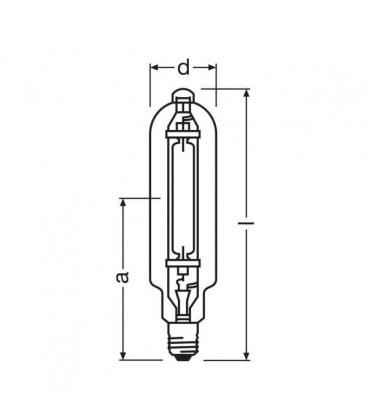

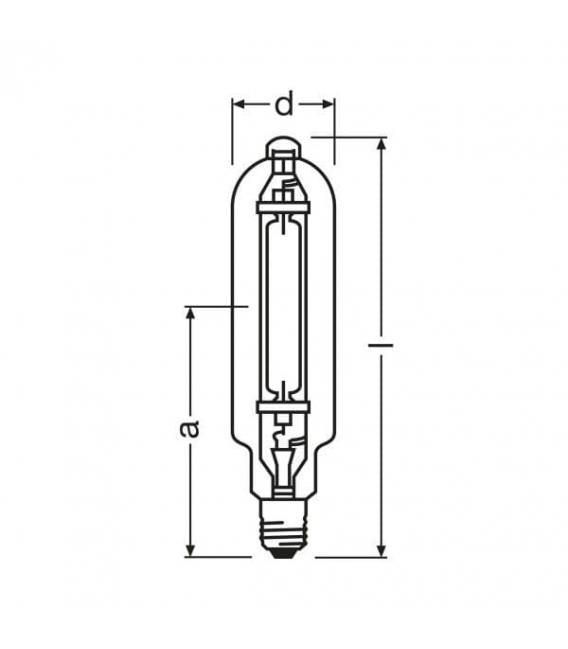

Diameter 100 mm
Length 430 mm
Light center length (LCL) 265 mm
Maximum permitted outer bulb temperature 500 °C
Maximum permitted base edge temperature 250 °C
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.84
Lifespan B50 5500 h
Product remark Lamp ignites at an ignition voltage of 0.9…1.3 kVs; lamps must not be operated with 4…5 kV igniters
Base (standard designation) E40
Design / version Clear
Lamp mercury content 175 mg
Burning position p60
Enclosed luminaire required Yes
Energy efficiency class A+
Energy consumption 2233 kWh/1000 h
Benefits
• Output of up to 2000 W
• High efficiency
• E40 screw base for simple lamp handling
• Long life time
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
• Factories and workshops
• Sports halls and multi-purpose halls
• Industrial installations
• Airports
• Docks and port facilities
• Marshaling yards, container transshipment facilities
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
Features
• Powerstar quartz technology
• Light colors: neutral white (N), daylight (D)
