Phototherapy
TL 20W 01 UV-B Narrowband
639745 | Manufacturer: Philips | EAN: 8711500639745 | MPN: 928010000101
More info - TL 20W 01 UV-B Narrowband Lamp Optimal Phototherapy Solution
The UV-B Narrowband TL lamp are the safest and most effective in their class. Emitting UV radiation in the ‘B’ bandwidth (290 to 315nm), these lamp are perfect for phototherapy systems treating skin diseases. Experience minimal side effects like redness, itching, and burns with shorter exposure periods and less erythemal radiation compared to conventional UVB lamps. Achieve optimal therapeutic results with proven effectiveness on the skin. Suitable for home therapy, backed by over 400 independent clinical studies.
System Description Rapid Start
Cap-Base G13
Bulb T38
Main Application Medical Therapy
Useful Life 2000 h
Life to 50% failures EM 2000 h
Color Code 01
Color Designation Ultra Violet B
Chromaticity Coordinate X 208 -
Chromaticity Coordinate Y 192 -
Depreciation 500 hours 10%
Depreciation 1000 hours 15%
Lamp Wattage 20 W
Lamp Wattage Technical 19.3 W
Lamp Voltage 59 V
Lamp Current 0.37 A
UV-B Radiation 100 h (IEC) 2.9 W
UV-B Radiation 5hr (IEC) 3 W

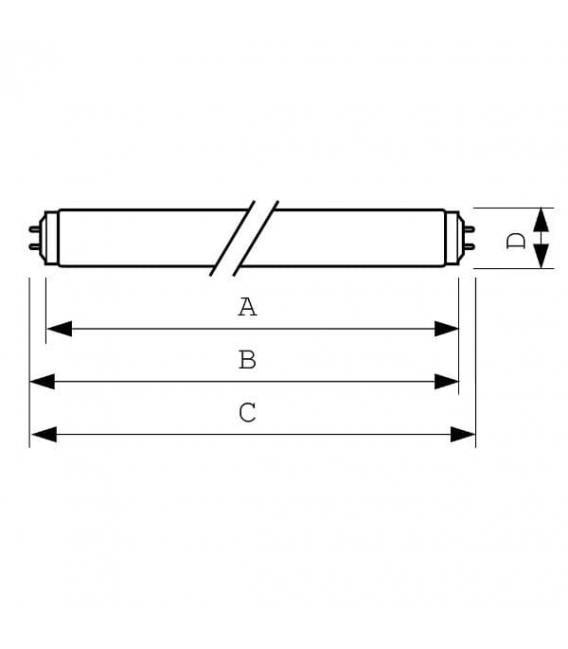

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 40.5 (max) mm
• Proven as the most effective in phototherapy
• Minimum side effects like redness, itching and burns
• Shorter period of exposure and less erythemal radiation than conventional UVB lamps
• Optimal therapeutic effect with minimum side effects
• Proven to be most effective on the skin

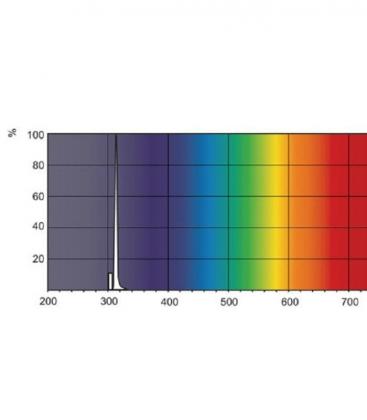

More than 400 independent clinical studies have proven that the UVB Narrowband TL lamps are safer and more effective than any other lamps in their class. That is because these lamps emit only a very narrow waveband from the ‘B’ bandwidth of the UV spectrum (290…315). This narrow waveband is between 305 and 315 nm and peaks at 311 nm: the most efficacious waveband for the treatment of psoriasis. This means that treatment is much more focused and exposure times are much shorter. This in turn leads to a reduction of side effects such as reddening of the skin and itching. All of this makes them ideal for phototherapy treatment of diseases such as psoriasis, parapsoriasis, vitiligo, atopic dermatitis, and mycosis fungoides. What’s more, because the overall dosage of this narrowband radiation can be closely controlled, these lamps are suitable for home therapy.
Features
• Emission peak at 311 nm
• Narrowband
• Special developed phosphor and glass
Applications
Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides, Other skin diseases
