Phototherapy
TL 40W 12 UV-B Broadband
628862 | Manufacturer: Philips | EAN: 8711500628862 | MPN: 928011301201
More info - TL 40W 12 UV-B Broadband Premium Phototherapy Lamp

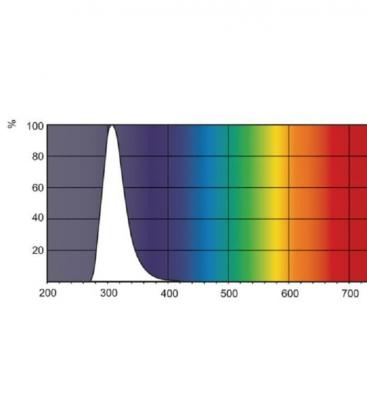

The Phototherapy lamp TL 40W 12 UV-B Broadband emits radiation in the ‘B’ bandwidth of the UV spectrum (290 to 315nm). It is suitable for phototherapy systems designed to treat skin diseases such as psoriasis.
System Description Rapid Start
Cap-Base G13
Bulb T38
Main Application Medical Therapy
Life to 50% failures EM 9000 h
Lamp Wattage 40 W
Lamp Wattage Technical 39 W
Lamp Voltage 101 V
Lamp Current 0.43A
Color Code 12
Color Designation Ultra Violet B
Chromaticity Coordinate X 230 -
Chromaticity Coordinate Y 230 -
Depreciation 500 hours 10%
Depreciation 1000 hours 15%

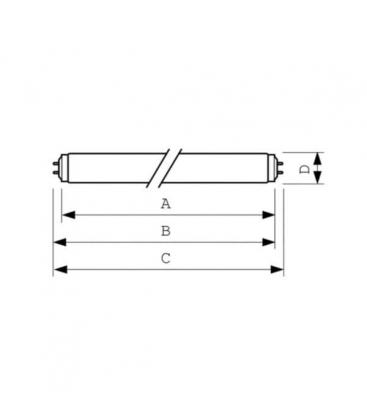

Base Face to Base Face A 1199.4 (max) mm
Insertion Length B 1204.1 (min), 1206.5 (max) mm
Overall Length C 1213.6 (max) mm
Diameter D 40.5 (max) mm
The UVB Broadband TL lamps emit radiation in the ‘B’ bandwidth of the UV spectrum (290…315 nm) and are therefore suitable for phototherapy systems designed to treat skin diseases such as psoriasis.
Applications
• Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides, Other skin diseases
System
• Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start system
