PL-S G23 UV-C TUV 9W 4P

Cap-Base 2G7
Cap-Base Information 4 Pins
Bulb 2 × T12
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 9 W
Lamp Wattage Technical 9 W
Lamp Voltage 60 V
Lamp Current 0.17 A
Color Code TUV
UV-C Radiation 2.3 W

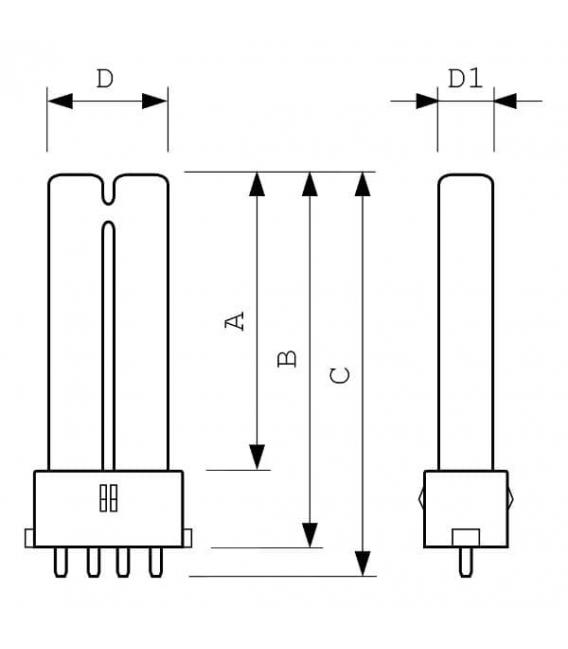

Base Face to Base Face A 127.2 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 167 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm

TUV PL-S lamps are compact UVC germicidal lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Features

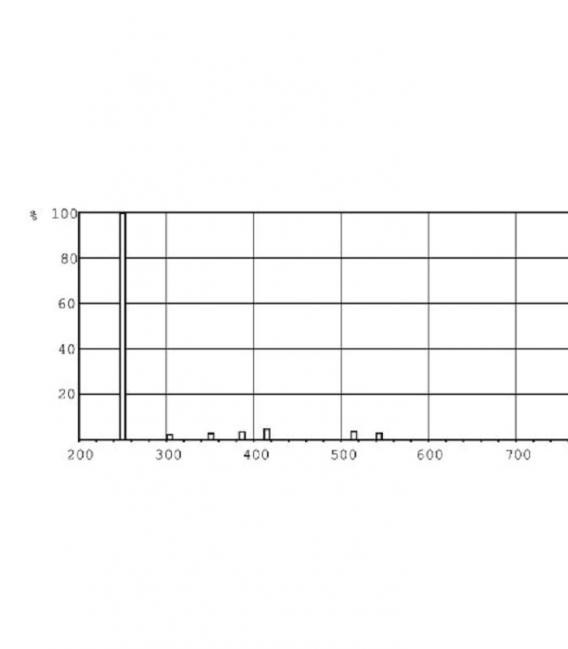

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
• High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond and process water units
• In-duct air treatment units
• Stand alone air purifiers
• Air disinfection systems in for example hospitals, universities and laboratories
