R7S – Linear Lamp
CorePro LED Linear 14 100W 830 220V R7s 118mm dimm
578797 | Manufacturer: Philips | EAN: 8718696578797 | MPN: 929001243702
More info - LED Linear 14 100W 830 R7s Lamp Energy Efficient
The CorePro LED Linear 14 100W 830 220V R7s 118mm dimm is a high-quality LED lamp that offers exceptional energy savings of up to 90% compared to standard halogen lamps. With easy retrofit installation and operating at 220-240V AC, it's designed for direct replacement in all double-ended holders. Boasting a long lifetime of 15000 hours, this lamp provides UV- and IR-free light while being free of mercury and hazardous materials. Perfect for living rooms, corridors, outdoor luminaires, free floor-standing indoor luminaires, and construction lighting.
Cap-Base R7S [ R7s]
Nominal Lifetime 15000 h
Switching Cycle 50000 ×
Technical Type 14-100 W
Color Code 830 [ CCT of 3000 K]
Luminous Flux 1600 lm
Luminous Flux (Rated) 1600 lm
Color Designation White (WH)
Correlated Color Temperature 3000 K
Luminous Efficacy (rated) 114.29 lm/W
Color Consistency <6
Color Rendering Index 80
LLMF At End Of Nominal Lifetime 70%
Input Frequency 50 - 60 Hz
Power (Rated) 14 W
Lamp Current 74 mA
Wattage Equivalent 100 W
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Power Factor 0.8
Voltage 220 - 240 V
T-Case Maximum 90 °C
Dimmable Yes
Energy Saving Product Yes
Suitable For Accent Lighting No
Energy Efficiency Label (EEL) A+
Energy Consumption kWh/1000 h 14 kWh

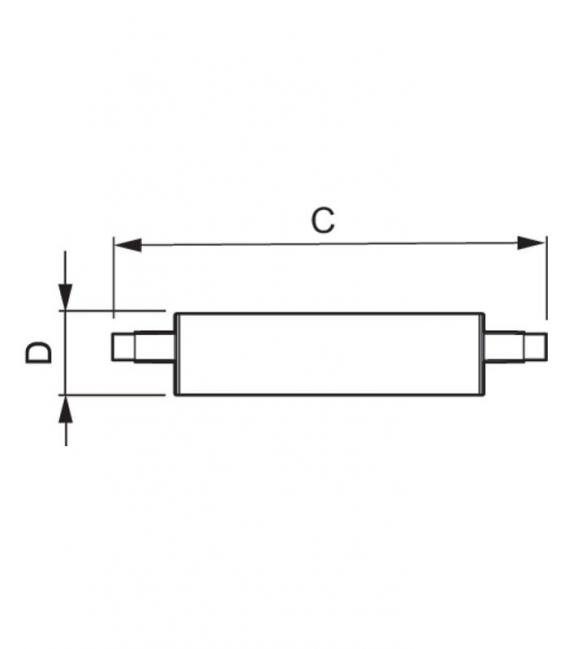

Overall Length C 118 (max) mm
Diameter D 29 (max) mm
Benefits
• Up to 90% energy saving compared to standard halogen lamps
• Lower maintenance costs
Features
• Easy retrofit
• Operates at 220 - 240 V AC and its form-factor is designed as a direct retrofit into all double ended holders
• Lifetime of 15000 hours (B50L70)
• UV- and IR-free light
• Free of mercury and hazardous materials - RoHS compliant
Applications
• Living rooms, corridors, outdoor luminaires (security lighting), free floor-standing indoor luminaires, construction lighting
