TUV 64T5 75W HE 4P

System Description High Efficiency
Cap-Base G10q
Cap-Base Information 4 Pins Single Ended
Bulb T5
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 75 W
Lamp Wattage Technical 75 W
Lamp Voltage 176 V
Lamp Current 0.425 A
UV-C Radiation 31 W

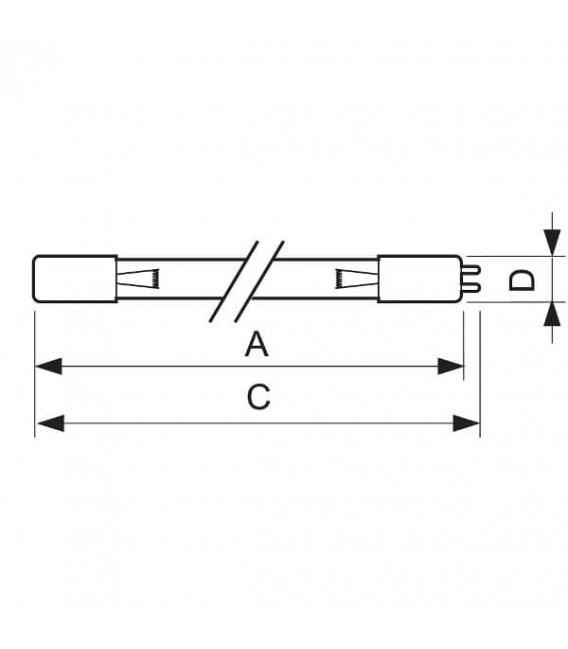

Reference Length A 1556.6 (max) mm
Overall Length C 1564.5 (max) mm
Diameter D 19 (max) mm

TUV T5 - Small diameter lamps for professional applications
• Security of effective disinfection over the useful lifetime of the lamp
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Good environmental choice because of lowest amount of mercury

TUV T5 lamps are single- or double-ended UVC germicidal lamps used in professional water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.

Features

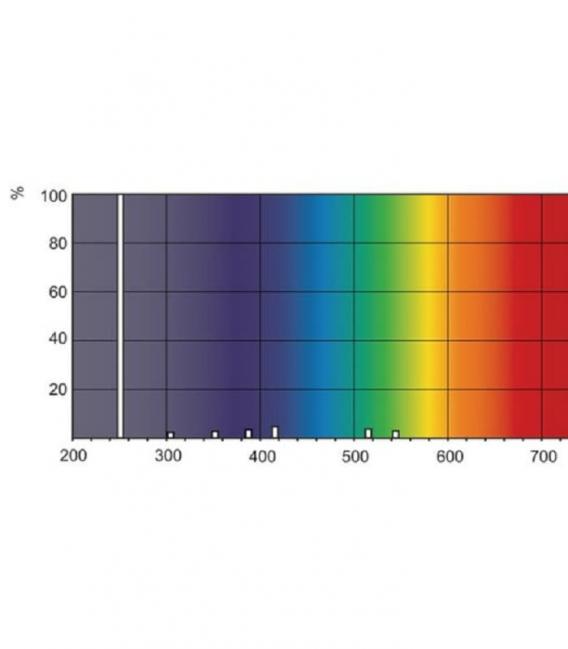

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
• Small diameter
• Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
• Lamp glass filters out the 185 nm ozone-forming radiation
• High temperature and UV-resistant lamp bases
• High Output versions available for optimum UVC output per lamp length, allowing for further reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC

Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Air treatment systems
• Industrial water disinfection equipment, e.g. for food andamp; beverage industry
• Small municipal water treatment systems
• Swimming pool units
• Residential drinking water units

General safety informations
