T8 G13 UV-C sterilization
T8 G13 UV-C 75W HO
618511 | Manufacturer: Philips | EAN: 8711500618511 | MPN: 928049404003
More info - Output 75W T8 G13 UV-C Lamp Sterilization Powerhouse
The T8 G13 UV-C Sterilization Lamp 75W HO is a professional-grade germicidal lamp used for water and air disinfection. With its almost constant UV output over its lifetime, this lamp ensures maximum security of disinfection and high system efficacy. It simplifies planned maintenance, eliminates the need for spot replacements, and offers a good environmental choice with its low mercury content. Ideal for applications in hospitals, laboratories, fish ponds, and more.
System Description High Output
Cap-Base G13
Bulb T8 [T8]
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 75 W
Lamp Wattage Technical 75 W
Lamp Voltage 110 V
Lamp Current 0.84 A
Mercury (Hg) Content 2 mg
UV-C Radiation 25.5 W

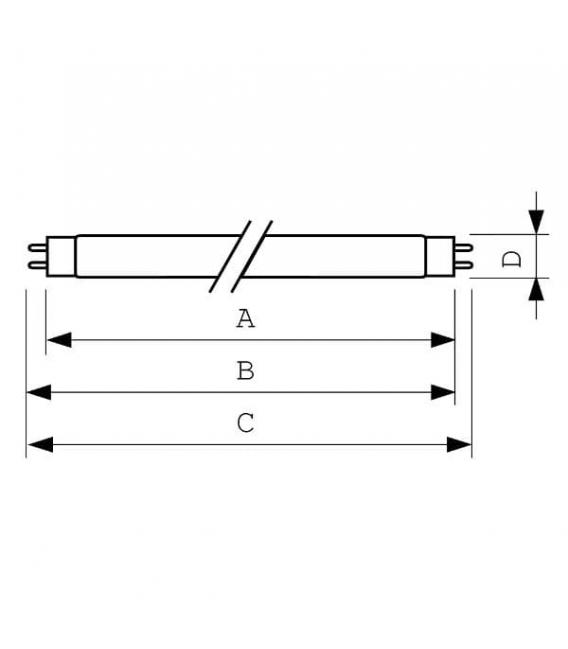

Base Face to Base Face A 1199.4 (max) mm
Insertion Length B 1204.1 (min), 1206.5 (max) mm
Overall Length C 1213.6 (max) mm
Diameter D 28 (max) mm
Benefits
• Guaranteed lifetime simplifying planned maintenance in professional applications
• Security of effective disinfection over the useful lifetime of the lamp
• Maintenance can be planned in advance, virtually eliminating the need for expensive spot replacement of prematurely failed lamps
• High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
• Good environmental choice because of lowest amount of mercury
Features

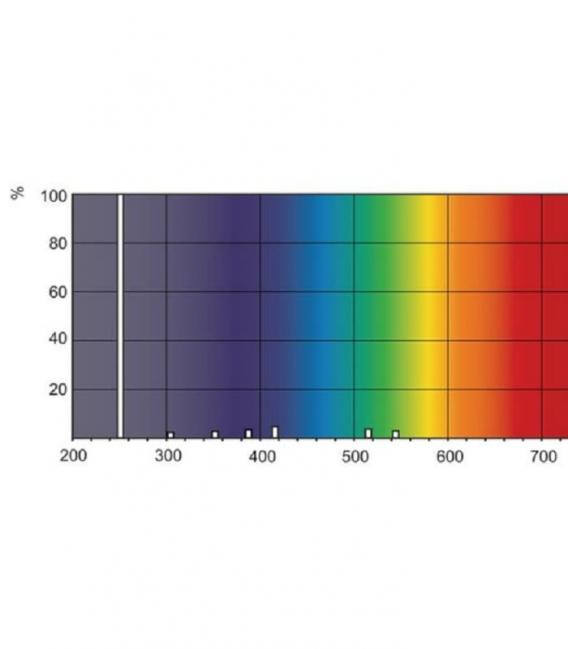

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Long lifetime of 18000 hours (based on operation on a Philips electronic driver)
• High reliability with the lowest percentage of lamps that fail prematurely in the market (90% of all lamps still operate on full output and quality after 15000 hif operated on a Philips electronic driver)
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC
Applications
• Air disinfection systems in professional applications such as universities, hospitals, jails and laboratories
• Upper air and whole room disinfection equipment in hospitals, intensive care units and surgery rooms
• Areas with low maintenance and/or disruptive costs
• Fish ponds and process water units
