UV-A Reprography
HTC-400 241W 220V R7s
694676 | Manufacturer: Osram | EAN: 4008321694676 | MPN: HTC-400-241
More info - HTC-400 241W 220V R7s UV-A Lamp Quality Reprography
The UV-A Reprography Lamp Supratec HTC-400 241W 220V R7s is a high-quality lamp designed for various technical applications. With its powerful radiated power, it can effectively cure large areas of plastic, dry paint and varnishes, and even facilitate glue curing. It's also perfect for exposing diazo film material and print masters, aging artificial materials, and exciting fluorescence with black glass filters. Get this reliable lamp now to experience efficient plastic curing in no time!
Nominal wattage 460 W
Nominal voltage 230 V
Construction voltage 230 V
Radiated power 315…400 nm (UVA) 82 W
Radiated power 280…315 nm (UVB) 12 W

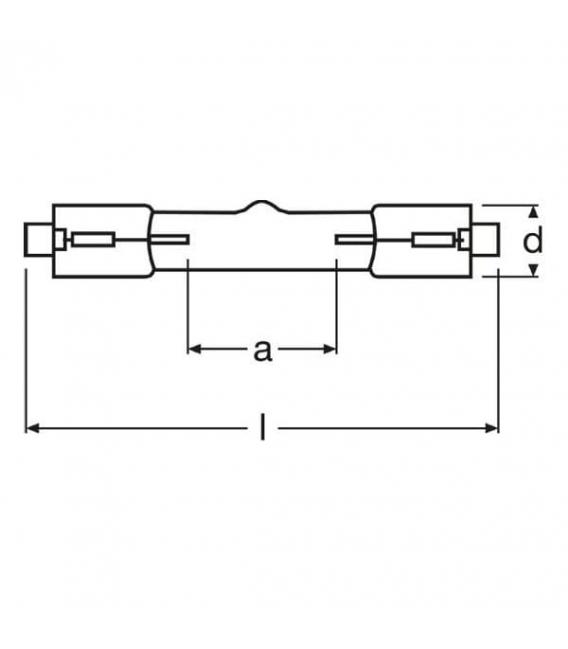

Diameter 14 mm
Length 104 mm
Light center length (LCL) 33 mm
Arc length 33 mm
Lifespan 1000 h
Base (standard designation) R7s
Burning position s180
Areas of application
• Curing large areas of plastic
• Drying paint and varnishes
• Glue curing
• Exposure of diazo film material and print masters
• Artificial material aging
• Fluorescence excitation (with black glass filters)
• Curing large areas of plastic
Features
• SUPRATEC UV high pressure lamps for technical applications
ATTENTION
SUPRATEC lamps emit UV radiation of high intensity which can cause sunburn and conjunctivitis. Skin or eyes must not be exposed to direct or reflected unfiltered radiation! Operate in closed fixtures only.
