UV-A Reprography
Flexo Print TL 60W 10 R G13
615725 | Manufacturer: Philips | EAN: 8711500615725 | MPN: 928008401003
More info - Flexo Print TL 60W 10 R G13 Premium UV-A Lamp
UV-A Reprography Lamp Flexo Print TL 60W 10 R G13: Emitting light in the useful UV-A and visible blue wavebands, this flexo print TL lamp is perfect for flexo printing equipment and photopolymerization processes. With a peak intensity at 370nm, it offers high efficiency in reprographics and photopolymerization, making it the best match with photo sensitizers. Experience the highest output on irradiated areas with this reliable lamp.
Cap-Base G13
Bulb T38
Main Application Reprography
Useful Life 1000 h
Color Code 10-R
Color Designation Ultra VioletA
Chromaticity Coordinate X 222 -
Chromaticity Coordinate Y 210 -
Depreciation 500 hours 10%
Lamp Wattage 60 W
Lamp Wattage Technical 60 W
Lamp Voltage 102 V
Lamp Current 0.7 A
Mercury (Hg) Content 13 mg
UV-A Radiation 100 h (IEC) 15.8 W
UV-B/UV-A (IEC) 0.1%

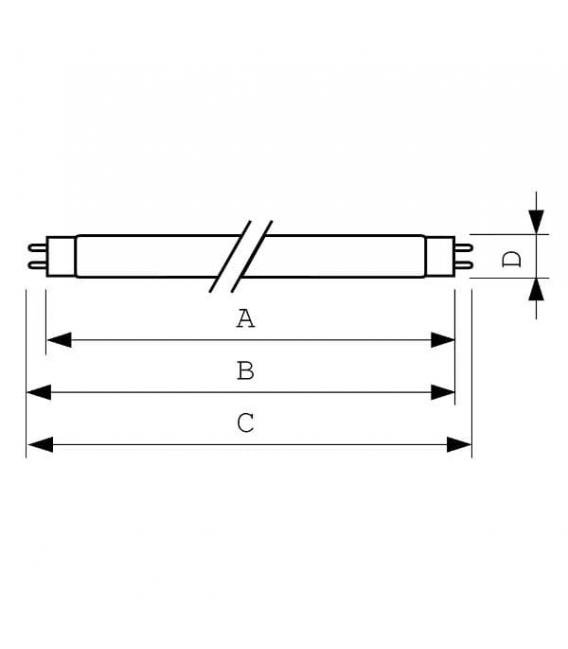

Base Face to Base Face A 1199.4 (max) mm
Insertion Length B 1204.1 (min), 1206.5 (max) mm
Overall Length C 1213.6 (max) mm
Diameter D 40.5 (max) mm

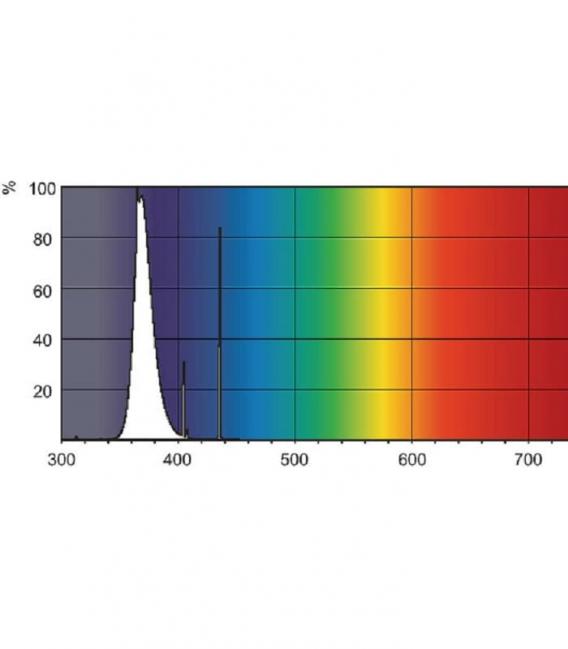

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands - between 350 and 400 nm - and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200 - degree reflector to further optimize the lamp’s overall efficiency.
Benefits
• High efficiency in reprographics and photopolymerization
• Best match with photo sensitizers
• Highest output on irradiated area
Features
• Emit radiation in the range 380-480 nm with a maximum at 370 nm
• Internal reflector
Applications
• Flexoprint reprograhic equipment, Diazo copying machines
