UV-A Reprography
Flexo Print TL 140W 03 G13
720948 | Manufacturer: Philips | EAN: 8711500720948 | MPN: 928012700303
More info - Flexo Print TL 140W 03 G13 UV-A Lamp
The UV-A Reprography Lamp Flexo Print TL 140W 03 G13 emits almost all of its light in the useful UV-A and visible blue wavebands, making it perfect for flexo printing equipment and photopolymerization processes. With a peak intensity at 370nm, this lamp ensures high efficiency in reprographics and photopolymerization, providing the highest output on the irradiated area.
Cap-Base G13
Bulb T38
Main Application Reprography
Useful Life 3000 h
Color Code 03
Color Designation Super Actinic
Chromaticity Coordinate X 175 -
Chromaticity Coordinate Y 45 -
Depreciation 500 hours 20%
Lamp Wattage 140 W
Lamp Wattage Technical 142 W
Lamp Voltage 118 V
Lamp Current 1.46 A
UV-A Radiation 100 h (IEC) 1 W

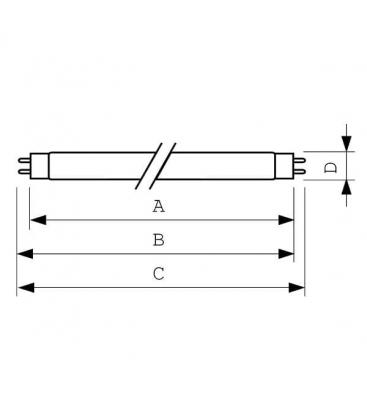

Base Face to Base Face A 1500 (max) mm
Insertion Length B 1504.7 (min), 1507.1 (max) mm
Overall Length C 1514.2 (max) mm
Diameter D 40.5 (max) mm
Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands - between 350 and 400 nm - and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200 - degree reflector to further optimize the lamp’s overall efficiency.
Benefits
• High efficiency in reprographics and photopolymerization
• Best match with photo sensitizers
• Highest output on irradiated area
Features
• Emit radiation in the range 380-480 nm with a maximum at 370 nm
• Internal reflector
Applications
• Flexoprint reprograhic equipment, Diazo copying machines
