G12
G12 MasterColour CDM-T 70W 925 Warm
203056 | Manufacturer: Philips | EAN: 8718291203056 | MPN: 928061405131
More info - MasterColour CDM-T 70W 925 Warm Premium G12 Lamp
Introducing the G12 Metal Halide Lamp MasterColour CDM-T 70W 925 Warm. Experience the world's most efficient and cost-effective accent lighting in a warm, sparkling glow. This unique light source combines very warm light with near-perfect color rendering and high efficacy. Perfect for creating a cozy atmosphere while showcasing your merchandise with accurate color reproduction. Enjoy long-lasting performance and energy efficiency that will enhance any retail display or general lighting application.
Cap-Base G12
Bulb T19 [T 19 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 5% failures EL 7000 h
Life to 10% failures EL 8000 h
Life to 20% failures EL 10000 h
Life to 50% failures EL 15000 h
Color Code 925
Color Rendering Index 93 Ra8
Color Designation Warm
Color Temperature 2500 K
Color Temperature Technical 2640K
Luminous Flux Lamp EL 6500 lm
Luminous Efficacy Lamp EL 89 lm/W
Lumen Maintenance EL 2000 h 94%
Lumen Maintenance EL 4000 h 90%
Chromaticity Coordinate X 0.460 -
Chromaticity Coordinate Y 0.405 -
Lamp Wattage 70 W
Lamp Voltage 95 V
Lamp Current EL 0.77 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 8.6 mg
Energy consumption kWh/1000 h 80 kWh
Damage Factor D/fc 0.2 (max) -
PET (NIOSH) 8 (min) h500 lx
Cap-Base Temperature 250 (max) °C
Pinch Temperature 350 (max) °C
Bulb Temperature 500 (max) °C

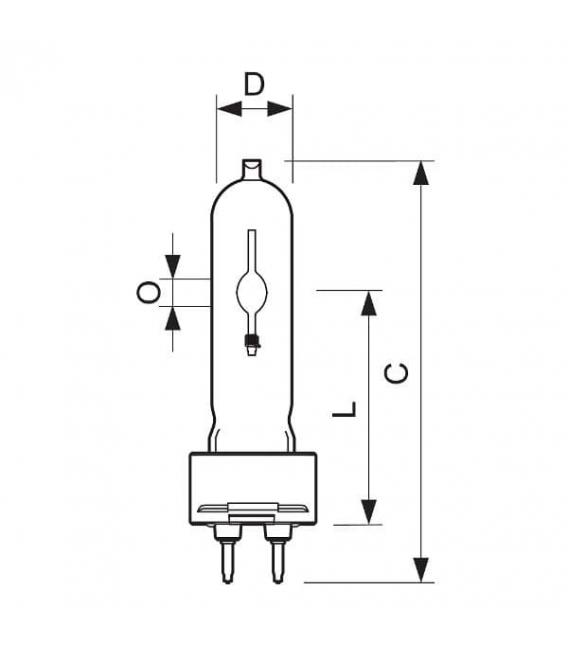

Overall Length C 103 (max) mm
Diameter D 20 (max) mm
Light Center Length L 55 (min), 56 (nom), 57 (max) mm
Arc Length O 5 mm
Light Center Length L [inch] 2.2 in
Overall Length C [inch] 3.94 (max) in
Diameter D [inch] 0.75 in
Warm sparkle, unrivalled efficiency
• Warm atmosphere creation
• Accurate color reproduction to make your merchandize look very attractive
• High energy efficiency
Features
• Warm color temperature (2500 K)
• High lamp efficacy
• Excellent lumen maintenance (80% at 15000 hours)
• Excellent color rendering (CRI > 90)
• Long life (15000 hours)
Applications
• Ideal for retail display and general lighting (particularly in supermarkets, bakeries and furniture stores)
