G8.5
HCI-TC-70W 830 wdl pb G8.5
681799 | Manufacturer: Osram | EAN: 4008321681799 | MPN: HCI-TC-70-830
More info - HCI-TC-70W 830 wdl pb Lamp G8.5 Category
Metal Halide Lamp HCI-TC-70W 830 wdl pb G8.5: High-efficiency metal halide lamp with ceramic technology, perfect for enclosed luminaires. Enjoy excellent color rendering and stability, along with UV values below the permitted thresholds. Ideal for shop interiors, museums, accent lighting, and more. Suitable for both indoor and outdoor use in appropriate fixtures.
Nominal wattage 70 W
Lamp current 0.95000 A
Rated wattage 73 W
PFC capacitor at 50 Hz 12µF
Ignition voltage 3.6 / 5 kVp
Energy consumption 81 kWh/1000 h
Luminous flux 7200 lm
Color rendering index Ra89
Color temperature 3000 K
Luminous efficacy 99 lm/W
Light color 830
Rated LLMF at 2000 h 0.84
Rated LLMF at 4000 h 0.82
UV protection Yes

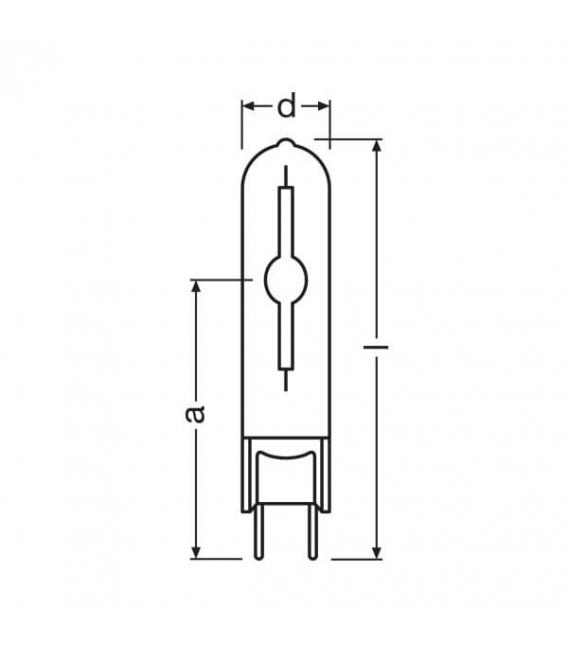

Diameter 15 mm
Length 81 mm
Light center length (LCL) 52 mm
Lamp mercury content 5.2 mg
Maximum permitted pinch temperature 350 °C
Maximum permitted outer bulb temperature 550 °C
Rated lamp survival factor at 2000 h 0.99
Rated lamp survival factor at 4000 h 0.98
Lifespan B50 15000 h
Operation mode LLMF/LSF ECG
Base (standard designation) G8.5
System guarantee level 3 (2/5)
Dimmable Yes
Burning position Any
Enclosed luminaire required Yes
Energy efficiency class A+
Benefits
• Very high efficiency
• Good to excellent color rendering
• Very good color stability
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Applications
• Shop interiors, shop windows
• Shopping arcades
• Foyers, reception areas
• Museums, exhibitions
• Accent lighting
• Decorative lighting
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
