Lamp holders G13 T8
Lampholder G13 107958
107958 | Manufacturer: Vossloh Schwabe | EAN: 4019768054947 | MPN: 107958
More info - 107958 Lampholder G13 Essential Accessory
Upgrade your lighting fixtures with the Lampholder G13 107958 for T8 /T12 lamps. Made of durable PC and PBT GF materials, this push-fit lampholder is designed for easy installation in surface-mounted or built-in luminaires. With a nominal rating of 2/500 and push-in terminals suitable for 0.5 - 1 mm² wires, this lampholder is compatible with Type: 84172 system 163 fixtures. Ensure proper wiring above or through the foot to seamlessly adapt your existing light fixtures to new bulb types. Trust the quality and reliability of our white casing Lampholder G13 for all your lighting accessory needs.
G13 push-fit lampholders for lamps T8/T12
Casing: PC, interior part: PBT GF
Rotor: PBT GF, white, T140
Nominal rating: 2/500
Push-in terminals: 0.5 - 1 mm²
Fixing clips for wall thickness 1.4–2 mm
Type: 84172 system 163
Ref. No.: 107958 casing white

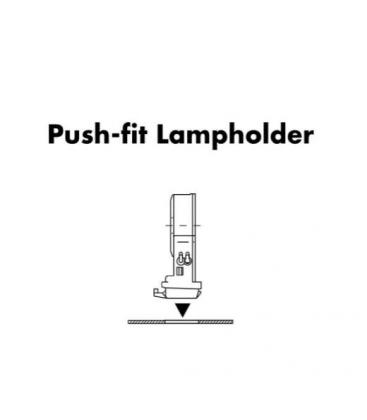

Push-fit lampholders
This lampholder type, which is frequently found in surface-mounted ceiling and built-in luminaires, is pushed into the luminaire casing from above. The lampholder foot should protrude by no more than 4 mm to match the usual height of the spacing cams in the luminaire casing. These lampholders are mostly wired above the luminaire casing to the side of the lampholder. However, there are also lampholders on which the wiring runs through the lampholder foot, with the leads laid beneath the luminaire casing.
