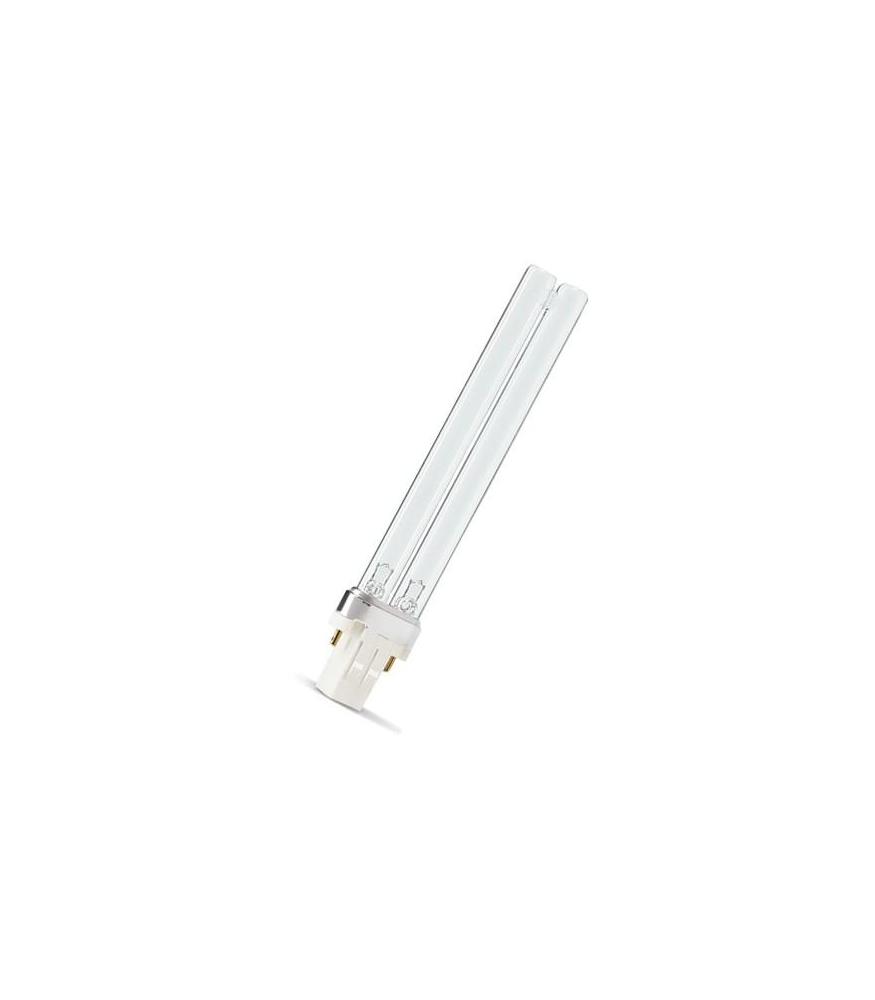

PL-S G23 UV-C sterilization
PL-S G23 13W UV-C
867230 | Manufacturer: Philips | EAN: 8711500867230 | MPN: 927902804007
More info - 13W PL-S G23 Efficiency UV-C Sterilization Lamp
The PL-S G23 13W UV-C Sterilization Lamp is a compact and powerful germicidal lamp designed for residential water and air disinfection units. With its short-wave UV radiation, constant output, and protective coating, this lamp ensures maximum security of disinfection. Its small size allows for flexible system design, while the single-ended base makes replacement easy. Ideal for deactivating bacteria, viruses, and other micro-organisms in various applications such as drinking water units, fish ponds, air treatment systems, and more.
Cap-Base GX23
Cap-Base Information 2 Pins
Bulb 2 × T12
Main Application Disinfection
Useful Life 9000 h
Lamp Wattage 13 W
Lamp Wattage Technical 13 W
Lamp Voltage 56 V
Lamp Current 0.29 A
Color Code TUV
UV-C Radiation 3.4 W

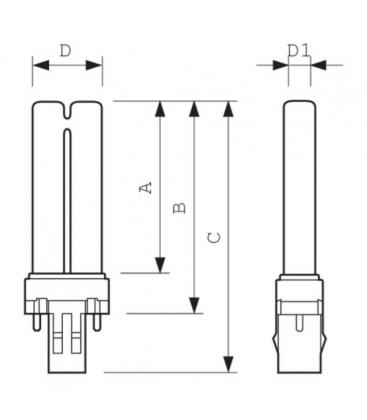

Base Face to Base Face A 139.5 (max) mm
Insertion Length B 155.2 (max) mm
Overall Length C 178.2 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
TUV PL-S lamps are compact UVC germicidal lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.
Features

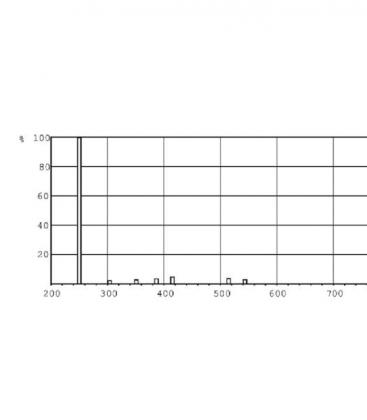

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
• High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC
Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond and process water units
• In-duct air treatment units
• Stand alone air purifiers
• Air disinfection systems in for example hospitals, universities and laboratories
