639400 | Manufacturer: Philips | EAN: 8711500639400 | MPN: 927926084055
Master TL5 14W 840 HE High Efficient G5
We have on stock last 3 pieces!
More info
The Master TL5 14W 840 HE High Efficient G5 is a high-performance lamp with a slim design and low energy consumption. With excellent lumen maintenance and good color rendering, it is perfect for offices, industry, public buildings, schools, hospitals, and indoor sports lighting. This lamp offers maximum light output at approximately 35 °C in free-burning position. It's specifically designed for operation with electronic gear and is ideal for recessed , surface-mounted, and suspended luminaires in various applications where high-quality and energy-effective lighting is required.
System Description High Efficiency
Cap-Base G5
Cap-Base Information Green Plate
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 19000 h
Life to 50% fail Preheat EL,3h 24000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 85 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EL 25 °C, Rated 1250 lm
Luminous Flux EL 25 °C, Nominal 1250 lm
Luminous Flux Lamp EL 35 °C 1350 lm
Luminous Efficacy Rated HF 25 °C 89 lm/W
Luminous Efficacy Rated HF 35 °C 99 lm/W
LLMF HF 2000 h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 380 -
Lamp Wattage 14 W
Lamp Wattage EL 25 °C, Rated 14 W
Lamp Wattage EL 25 °C, Nominal 14 W
Lamp Wattage EL 35 °C 13.7 W
Lamp Voltage EL 25 °C 86 V
Lamp Voltage EL 35 °C 82 V
Lamp Current EL 25 °C 0.165 A
Lamp Current EL 35 °C 0.170 A
Dimmable Yes
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 15 kWh
Calibration Current 0.170 A
HF Generator Rated Voltage 167 V
Resistor 500 Ω

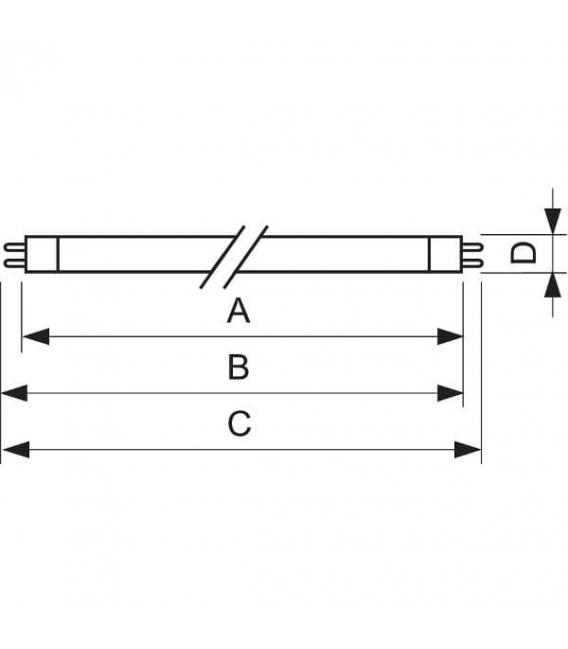

Base Face to Base Face A 549 (max) mm
Insertion Length B 553.7 (min), 556.1 (max) mm
Overall Length C 563.2 (max) mm
Diameter D 17 (max) mm
The MASTER TL5 High Efficiency family
This TL5 lamp (tube diameter 16 mm) has a high luminous efficacy, resulting in low energy consumption. The High Efficiency TL5 lamp offers excellent lumen maintenance and good color rendering. Application areas are offices, industry, public and governmental buildings, schools, hospitals and indoor sports lighting.
Features
• 40% thinner and 5 cm shorter than corresponding TL-D lamps
• High lamp efficacies up to 104 lm/W
• Specifically designed for operation with electronic gear
• Maximum light output reached at approximately 35 °C in free-burning position
Applications
• Ideally suited for recessed, surface-mounted and suspended luminaires in applications like offices, shops, schools, public buildings and industry (low ceiling), wherever high-quality, energy-effective lighting is required
