T5 High Efficiency fluorescent lamps
Master TL5 35W 830 HE High Efficient G5
639509 | Manufacturer: Philips | EAN: 8711500639509 | MPN: 927927083061
More info - Master TL5 35W 830 HE High Efficient G5 Illuminate Brilliance
The Master TL5 35W 830 HE High Efficient G5 is a high-performance lamp with a slim design and excellent energy efficiency. With a luminous efficacy of up to 104 lm/W, this lamp offers bright and efficient lighting for offices, shops, schools, and other indoor spaces. It has a long lifespan of up to 24,000 hours and provides warm white light with a color temperature of 3000 K. Ideal for recessed or suspended luminaires, this lamp is perfect for those seeking high-quality and energy-effective lighting solutions.
System Description High Efficiency
Cap-Base G5
Cap-Base Information Green Plate
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 19000 h
Life to 50% fail Preheat EL,3h 24000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 85 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EL 25 °C, Rated 3325 lm
Luminous Flux EL 25 °C, Nominal 3325 lm
Luminous Flux Lamp EL 35 °C 3650 lm
Luminous Efficacy Rated HF 25 °C 94 lm/W
Luminous Efficacy Rated HF 35 °C 105 lm/W
LLMF HF 2000 h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 440 -
Chromaticity Coordinate Y 403 -
Lamp Wattage 35 W
Lamp Wattage EL 25 °C, Rated 35.3 W
Lamp Wattage EL 25 °C, Nominal 35 W
Lamp Wattage EL 35 °C 34.7 W
Lamp Voltage EL 25 °C 205 V
Lamp Voltage EL 35 °C 209 V
Lamp Current EL 25 °C 0.175 A
Lamp Current EL 35 °C 0.170 A
Dimmable Yes
Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 38 kWh
Calibration Current 0.170 A
HF Generator Rated Voltage 413 V
Resistor 1200 Ω

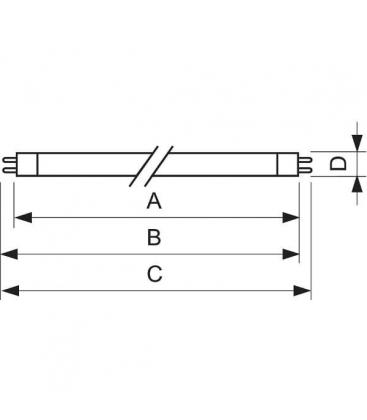

Base Face to Base Face A 1449 (max) mm
Insertion Length B 1453.7 (min), 1456.1 (max) mm
Overall Length C 1463.2 (max) mm
Diameter D 17 (max) mm
The MASTER TL5 High Efficiency family
This TL5 lamp (tube diameter 16 mm) has a high luminous efficacy, resulting in low energy consumption. The High Efficiency TL5 lamp offers excellent lumen maintenance and good color rendering. Application areas are offices, industry, public and governmental buildings, schools, hospitals and indoor sports lighting.
Features
• 40% thinner and 5 cm shorter than corresponding TL-D lamps
• High lamp efficacies up to 104 lm/W
• Specifically designed for operation with electronic gear
• Maximum light output reached at approximately 35 °C in free-burning position
Applications
• Ideally suited for recessed, surface-mounted and suspended luminaires in applications like offices, shops, schools, public buildings and industry (low ceiling), wherever high-quality, energy-effective lighting is required
