T5 short fluorescent lamps
Master TL Mini 13W 840 G5 Super 80
716859 | Manufacturer: Philips | EAN: 8711500716859 | MPN: 928001508450
More info - Master TL mini 13W 840 G5 Super 80 Efficient
The Master TL Mini 13W 840 G5 Super 80 is a small and efficient bulb with good color rendering. It has high efficacy and lumen maintenance compared to standard lamps. With its small dimensions, it's perfect for applications where space is limited, such as hall and staircase lighting in apartment buildings or emergency lighting . Upgrade your lighting system with this energy-efficient option that offers better color rendering and efficacy than standard colors.
Cap-Base G5
Bulb T5 [16 mm]
Life to 10% failures EM 4000 h
Life to 50% failures EM 8000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 85 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux Lamp EM 1000 lm
Luminous Efficacy Lamp EM 77 lm/W
Lumen Maintenance 2000 h 90%
Lumen Maintenance 5000 h 77%
Lumen Maintenance 10000 h 71%
Luminance Average EM 1.20 cd/cm²
Chromaticity Coordinate X 381 -
Chromaticity Coordinate Y 379 -
Lamp Wattage 13 W
Lamp Wattage EM 13 W
Lamp Voltage 90 V
Lamp Current EM 0.170 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 14 kWh

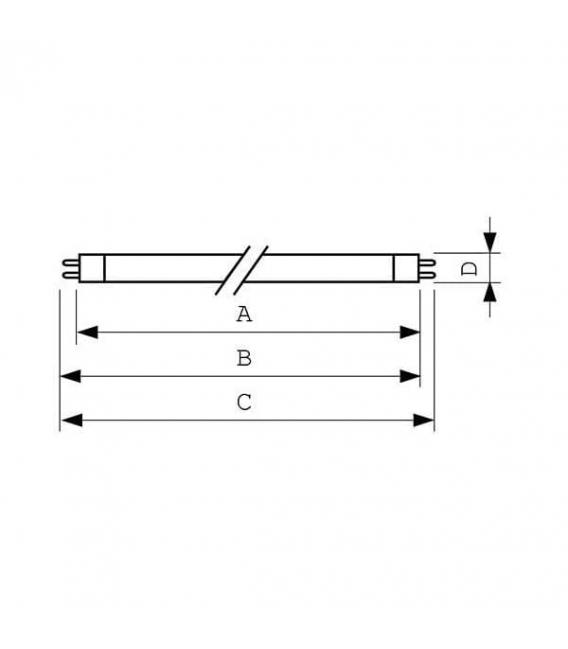

Base Face to Base Face A 516.9 (max) mm
Insertion Length B 521.6 (min), 524 (max) mm
Overall Length C 531.1 (max) mm
Diameter D 16 (max) mm
Benefits
• Good color rendering
• High efficacy, both initially and during lamp lifetime, with high lumen maintenance compared with standard lamps
• Small lamp dimensions enables system miniaturization
Features
• Small diameter tubes
• Highly efficient 3-band fluorescent coating
• Possibility for operation on low-voltage DC supply
Applications
• Ideal for applications where space is limited and requiring better color rendering and efficacy than standard colors, i.e.: hall and staircase lighting in apartment buildings, built into furniture, mirror and cupboard lighting, emergency lighting
