DALI 105 Transformer 230-240V, 35-105W
420633 | Manufacturer: Osram | EAN: 4008321420633 | MPN: HTI-105
More info - DALI 105 Transformer 230-240V, 35-105W Premium Electronics
Upgrade your lighting system with the DALI 105 Electronic Transformer. With a wattage range of 35-105W and dimmable capabilities, this transformer offers efficient performance for low-voltage halogen lamps. Its high efficiency ensures minimal power consumption, while its protective features guarantee long lamp life. Perfect for various applications such as living rooms, restaurants, and conference rooms, this transformer is a must-have for any indoor installation. Trust in its electrical isolation and reversible protection to enhance your lighting experience.
Lamp wattage 35-105 W
Line current 0.45 A
Input voltage DC 176…275 V
Power factor λ 0.95
Operating frequency 40 kHz
Nominal output voltage 11.6 / 11.4 V
Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
System wattage 108 W
Max. ECG no. on circuit breaker 10 A (B) 23
Max. ECG no. on circuit breaker 16 A (B) 38
Galvanic isolation primary/secondary 4 kV
Inrush current 0.6 A

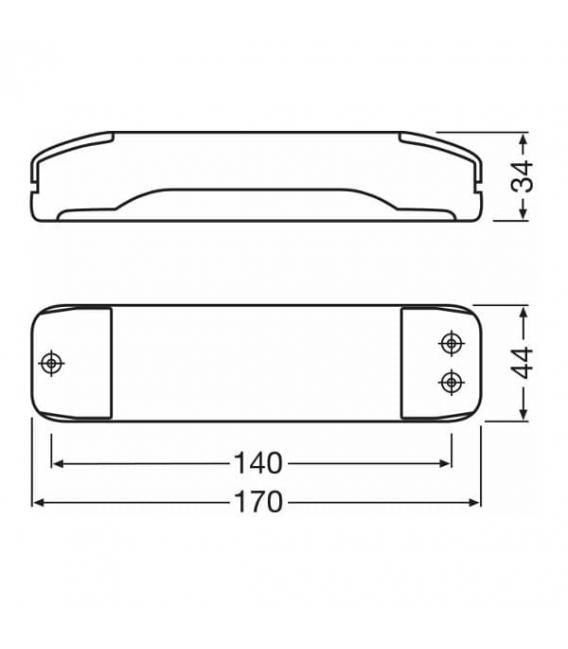

Length 170 mm
Width 44 mm
Height 34 mm
Wire preparation length, input side 8 mm
Wire preparation length, output side 8 mm
Mounting hole spacing, length 140 mm
Ambient temperature range –20…+50 °C
Maximum temperature at tc test point 75 °C
Design / version Long with cable clamp
Dimming method DALI or Touch DIM/Touch DIM Sensor
Dimming interface DALI / Touch DIM
Overload protection Automatic reversible
Overheating protection Automatic reversible
Short-circuit protection Automatic reversible
Max. cable length to lamp/Led module 2.0m
Cable/wire types, input side H03VV-F 2 × 0.50 / H03VV-F 2 × 0.75 / H03VVH2-F 2 × 0.75 / H05 VVH2-F 2 × 0.75 / H05 VV-F 2 × 2.5 / H05 VV5G 1.5 / NYM-O 2 × 1.5 / NYM-J 3 × 1.5 / NYM-J 5 × 1.5 mm²
Cable/wire types, output side H03VV-F 2 × 0.75 / H05 VV-F 2 × 0.75 / H05 VV-F 2 × 1.5 / H05 VV-F 2 × 2.5 / NYM-J 3 × 1.5 / NYM-J 3 × 2.5 / NYM-O 2 × 1.5 mm²
Dimmable Yes
Dimming range 0.1…100%
No-load proof Yes
Approval marks - approval E1 approval / VDE / VDE-EMC
Standards Acc. to EN 55015: 2006 + A1: 2007/Acc. to EN 61000 - 3-2/Acc. to EN 61547/Acc. to EN 61347-2-2
Type of protection IP20
Benefits
• Very low power consumption thanks to high efficiency
• Through-wiring possible on the primary side
• Large temperature range
• Protective operation throughout the entire partial-load range for long lamp life
Areas of application
• Effect and accent lighting
• Living rooms
• Object lighting
• Conference rooms
• Restaurants
• Recessed and surface-mounted ceiling luminaires
• Shop lighting
• Event rooms
• Suitable for indoor installations
Features
• DALI transformer für low voltage halogen lamps
• Electrical isolation between the primary side and the secondary side
• Short-circuit protection, overload protection, overtemperature protection: electronically reversible
• Switching between electronic transformer and lamp not permitted
• Energy efficiency: ≥ 91% (according to ErP regulation 2012/1194/EC)
• Device fits also for special applications where dimming below 1% is required
